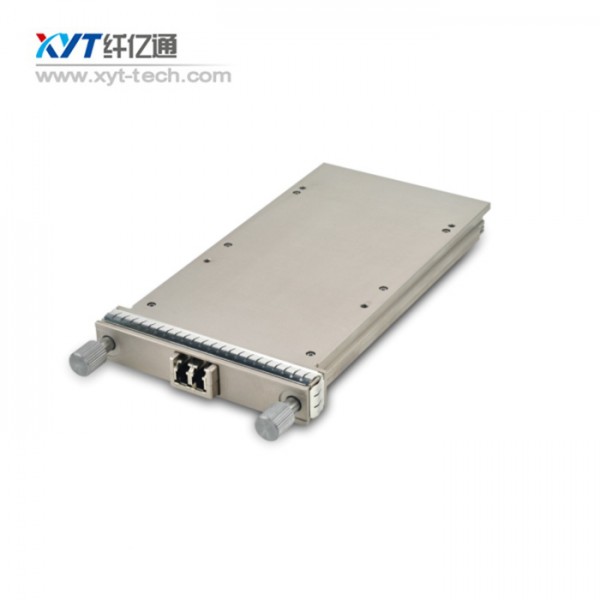

Sharetop’s 100G_CFP ER10, 100G CFP ER10 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, 10 lanes of serial data streams are recovered, retimed,and passed on to 10 laser drivers, which control ten electric-absorption modulated lasers (EMLs) with C band wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, 10 lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.
- Product Features -
Supports 103.1Gbps to 112Gbps bit rates
Duplex LC connector
Hot pluggable
10x10Gb/s DWDM transmitter and pin receiver
10x10G MLD electrical interface
Applicable for 40km SMF connection
Low power consumption, < 16W
Digital Diagnostic Monitor Interfacel
MDIO Communication Interface
Operating case temperature Commerical:0 to 70 °C
- Product Specification -
100GBASE-ER10 100G Ethernet
Other Optical link
Optical Characteristics (Top=0~70℃, Vcc=3.2~3.4V)
(Tested under recommended operating conditions,unless otherwise noted)
Parameter | Symbol | Unit | Min | Typ | Max | Notes | |||||
Transmitter | |||||||||||
Signaling rate, each lane | GBd | 10.3125 | |||||||||
Lane Wavelength Range | λ1 | nm | DWDM | 1 | |||||||
Pout | dBm | +11.7 | |||||||||
Average launch power, each lane | Pavg | dBm | -4 | +2 | |||||||
Difference in launch power between any two lanes (OMA) | dB | 5 | |||||||||
Extinction ratio | ER | dB | 3.5 | ||||||||
Side-mode suppression ratio | SMSR | dB | 30 | ||||||||
Optical return loss tolerance | dB | 20 | |||||||||
Transmitter reflectance3 | dB | –12 | |||||||||
Transmitter eye mask {X1, X2, X3, Y1, Y2, Y3} | IEEE 802.3 Clause 100Gbase | ||||||||||
Optical Receiver Characteristics | |||||||||||
Receive Rate for Each Lane | Gbps | 10.3125 | |||||||||
Overload Input Optical Power | Pmax | dBm | 5.5 | ||||||||
Average Receive Power for Each Lane | Pin | dBm | -16 | 0 | |||||||
Receiver Sensitivity(OMA)per lane | Psens1 | dBm | -16 | 2 | |||||||
Return Loss | RL | dB | -26 | ||||||||
Receiver Electrical 3dB upper cutoff frequency, per lane | GHz | 31 | |||||||||
Los De-Assert | Pd | dBm | -30 | -15 | <b | ||||||
|
