- Product Description -

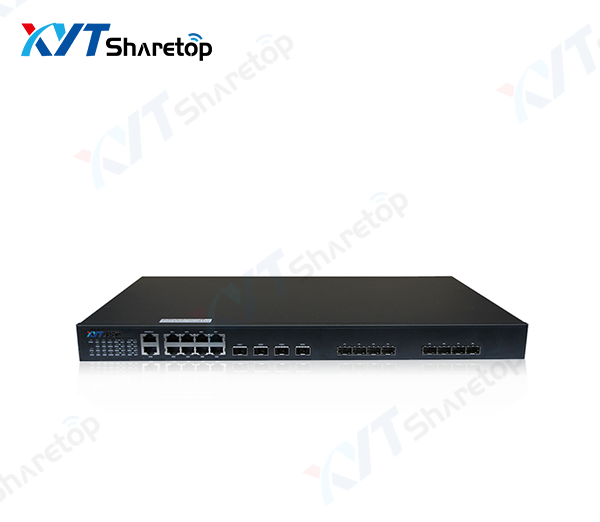

8-port EPON-OLT is a cassette GPON-OLT exchange device developed by Shenzhen Sharetop Technology Co., Ltd., providing 8 downside EPON ports, 4 uplink GE optical ports+4 upside GE ports, with an extended slot that can be connected to 210,000 megabytes SFP+ ports.Height is only 1U, easy installation and maintenance, save space.With industry advanced technology, strong capabilities and QoS guarantee in the Ethernet business, the support for SLA and DBA.The optical ratio of 1:128 supports the hybrid network of different types of ONU, minimizing the investment of operators.
- Product Features -
1.Provide high-density PON port, the whole machine can support 1024 ONU terminals, larger than the ordinary box OLT capacity.Each PON port supports a 1:128 separation ratio (up to 128 ONU), which can choose up to 410,000 trillion interfaces, hot-plug PON optical module design and a transmission distance of 65Km.
2.Support EPON fiber redundancy protection, and automatic link protection switch in case of fiber failure.
3.Comprehensive PON business capabilities, support dynamic bandwidth distribution DBA algorithm, dynamic Bandwidth Distribution Mechanism (DBA) enables all users to share 2.5Gbps bandwidth more reasonably and achieve reliable quality of service.
4.Support rich Ethernet functions, with effective isolation guarantee mechanism, VLAN isolation, protection port, MAC address binding, IP address binding, port speed limit, queue technology, flow control technology,etc.For the technical guarantee of multi-business integration.
5.Perfect security protection mechanism, adopts hardware-based package by packet forwarding, can effectively detect and filter feature messages, support ARP attack based on MAC address, automatic protection and automatic user blocking function, and prevent the attack of protocol messages.Support various anti-DDoS, CPU overload protection and VRRP and other equipment protection functions, to prevent illegal or abnormal traffic into entering the network, to resist a variety of virus attacks, to ensure the safety of equipment management.
6.Rich business functions, fully support the second-floor business functions.With advanced functions such as flexible QinQ and QoS, ACL supports L2~L7 in-depth 80-byte message filtering of IP messages, to provide high-quality QoS service quality guarantee for multi-business operation.
7.Highly centralized operation management and maintenance, business-oriented, providing a unified network transmission and interconnection protocol, address management, domain name management, security management, user access management, etc.Rich OAM functions, including configuration, alarm, performance monitoring, fault isolation, and security management.
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
