- Product Description -

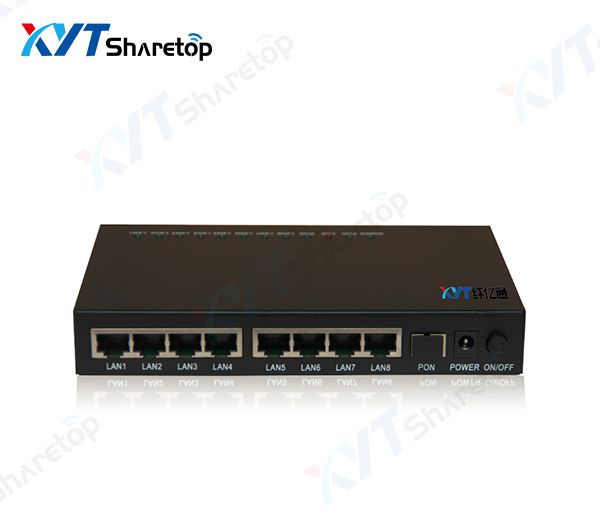

The 8-port EPON-ONU device is an MDU device that follows IEEE802.3ah and the Communication Industry Standards of the People's Republic of China (YD/T 1475-2006), integrating Ethernet switch function and optical network unit ONU function, and can be organically integrated with XYT’s OLT products to form an efficient EPON solution.Can very well meet the application of radio and television two-way network, operator FTTO/FTTB.
- Product Features -
1.Point-to-point network topology, effectively collect user scattered Ethernet business, and gather at the urban area network junction point, using GE interface to connect the upper equipment, to achieve smooth interconnection with the existing network
2.The dynamic bandwidth allocation mechanism enables all users to share 1Gbps bandwidth more reasonably, achieve reliable quality of service (QoS), and ensure the quality of service of different services in the same network
3.Support Ethernet loop detection, automatically determine whether the Ethernet circuit network is Ethernet loop blocked, when the loop disappears, it can automatically recover
4.Support for IGMP multicast, the effective use of broadband.Support for multicast VLAN
5.Support port isolation
6.ACL filtering supporting layers 2-7
7.Support remote loop loop, remote diagnosis of network status
8.Metal shell has 8 gigabit independent mesh ports
9.Support network tube
10.FC,CE,ROHS Certification
11.Rich OAM feature design, including configuration, alarm, performance monitoring, fault isolation, and security management, which provides remote management through OLT and supports local console management
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
