- Product Description -

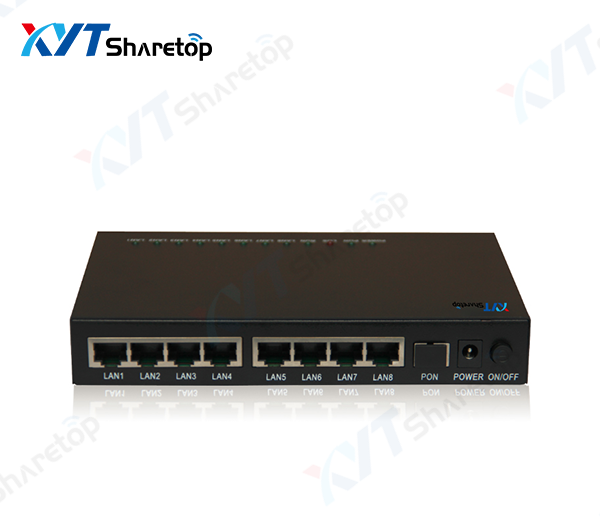

The GPON 8 port ONU devices are following the ITU-TG.984.x and the MDU equipment of the People's Republic of China (YD/T 1475-2006), integrating Ethernet switch function and optical network unit ONU function, can be organically integrated with Fibweitong OLT products to form efficient GPON solutions.Can very well meet the application of radio and television two-way network, operator FTTO/FTTB.
- Features -
1.Point-to-point network topology to effectively collect user-dispersed Ethernet business and converge, provide a standard RJ45 fast Ethernet interface on the user side, and smooth interconnection with the existing network
2.Dynamic bandwidth distribution mechanism enables all users to more reasonably share up 1.25G, downside 2.45Gbps bandwidth, achieving reliable quality of service (QoS), ensuring the quality of service of different businesses in the same network
3.Support for IGMP multicast, the effective use of broadband
4.Support port isolation
5.Support Ethernet loop detection, automatically determine whether the Ethernet circuit network is Ethernet loop blocked, when the loop disappears, it can automatically recover
6.Support for multicast VLAN
7.ACL filtering supporting layers 2-7
8.Support remote loop back, remote diagnosis of network status
9.Rich OAM feature design, including configuration, alarm, performance monitoring, fault isolation, and security management, which provides remote management through OLT and supports local console management
10.Metal shell has 8 gigabit independent mesh ports
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
