- Products description -
XYT-LE5000 series is a new generation of optical transmission system launched by XYTSharetop Technology. The system has high business integration, high port density, rich types of accessible services, flexible configuration, and supports a graphical management interface based on SNMP protocol. Remote management, function settings, and real-time monitoring of the working environment temperature, working voltage, redundant power backup status, and cooling fan working status of the central office rack. Provides very clear fault location for management and maintenance, saving maintenance costs.
This series of products are oriented to all-optical networks and are used in the construction of national, inter-provincial and intra-provincial trunk lines, local metropolitan area networks and various private networks, meeting the needs of 155M~9.6T large-capacity nodes, and flexibly building a variety of optical transmission solutions. At present, this series of products have been widely used in domestic and foreign telecom operators, government and enterprise smart private networks (such as State Grid, public security private network, military intranet, smart water, coal mine transmission private network, college education network, etc.), data center interconnection, etc. field.

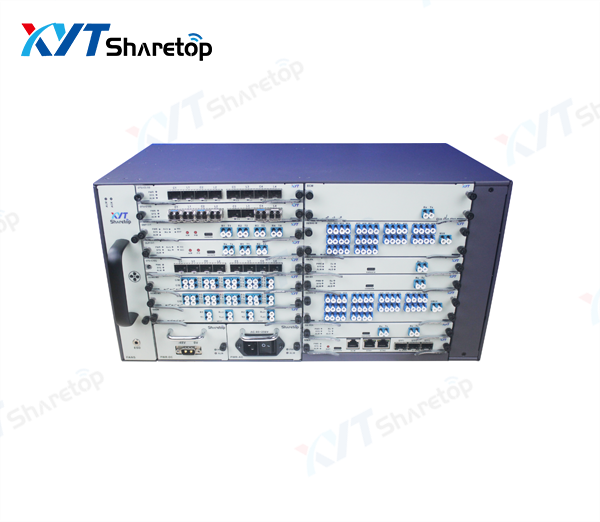

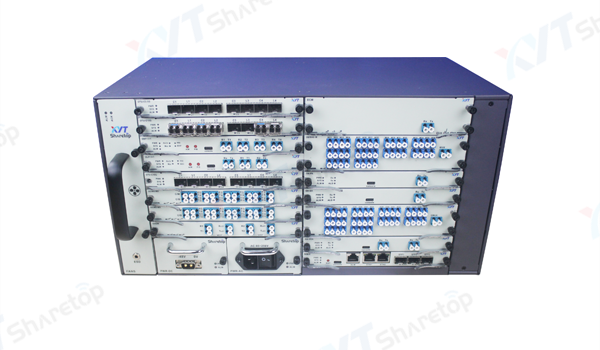

The XYT-LE5000 series chassis adopts a new design, using green environmental protection, low power consumption, low radiation, non-toxic, and renewable raw materials. According to the number of services, 1U, 2U, and 5U chassis can now be selected. A single chassis supports 4/8/18 slots, all of which are designed with front panel slots and support single-board hot swap. Each functional unit board can be flexibly connected without being limited by the slot. Under the same system capacity, the equipment is more integrated, which effectively saves the space of the equipment room.
- Product Features -
1. Support a variety of different types of service access mixed transmission;
2. Support a variety of service access mixed transmission at different rates;
3. Support 1+1 dual power hot backup (AC/DC optional);
4. Support mixed insertion and hot swap of different business cards;
5. Support in-band and out-of-band network management, which can realize remote network management and convenient operation and maintenance;
6. Support client access from different manufacturers, interconnect and interoperate with equipment from various manufacturers, and support client equipment as single-mode (1310nm/1550nm), multi-mode (850nm/1310nm), electrical port (RJ45), etc.
7. Support multiple subsystems: active wave molecular system, optical amplification subsystem, optical protection subsystem, dispersion compensation subsystem, optical cable monitoring subsystem, etc.
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
