- Products description -
With the development of optical networks, especially after the emergence of 5g networks, the amount of data transmission has increased significantly. 40g optical modules have been widely used in various optical networks to quickly improve the transmission capacity and rate of optical networks.

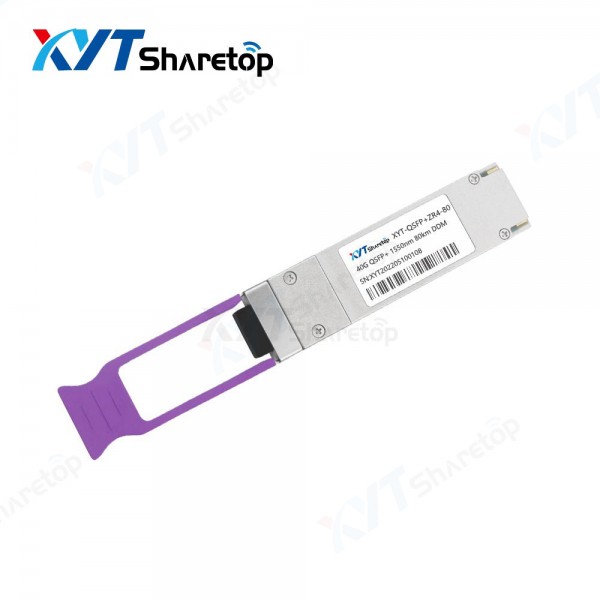

The 40g launched by xianyitong technology meets the qsfp MSA standard and adopts highly reliable lasers with transmission distances of 100m, 300m, 1.4km, 2km, 10km, 30km, 40km and 80km. It can be hot swapped, with built-in digital diagnosis function and low power consumption. This model is qsfp + 1550-zr4-80, duplex LC interface, which requires 2-core single-mode optical fiber to realize transceiver. For short distances, such as within 10 km, EDFA and dispersion compensation module (DCM) are not required. However, for relatively long distances, EDFA and DCM are required to compensate for fiber link loss and fiber dispersion. The product features are as follows:
- Product Features -
1. Comply with 40g Ethernet ieee802.3ba and 40gbase-er4 standards;
2. Working wavelength 1550nm, speed 40Gbps;
3. It can transmit 80km on single-mode optical fiber (DCM and EDFA need to be used together);
4. Integrate FEC function;
5.4x10g xlaui host interface;
6. Working enclosure temperature: 0 to 70 ℃;
7. Power consumption ≤ 3.5W;
8. Duplex LC interface;
9. Comply with qsfp + MSA sff-8636
10. Qsfp + MSA digital monitoring function
11. RoHS compliant.
- Product Specification -
1. High speed interconnection of data centers;
2.40g Ethernet;
3.40g network card communication;
4.10g-40g seamless upgrade.
|
