- Products description -

With the development of optical networks, especially after the emergence of 5g networks, the amount of data transmission has increased significantly. 100g optical modules have been widely used in various optical networks to quickly improve the transmission capacity and rate of optical networks.

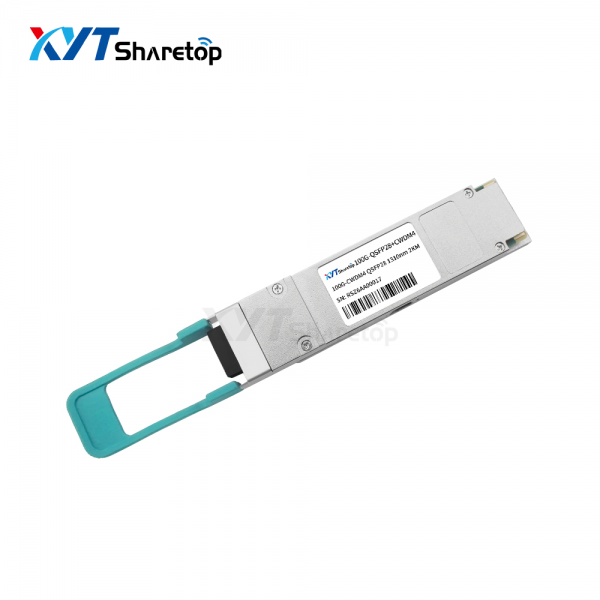

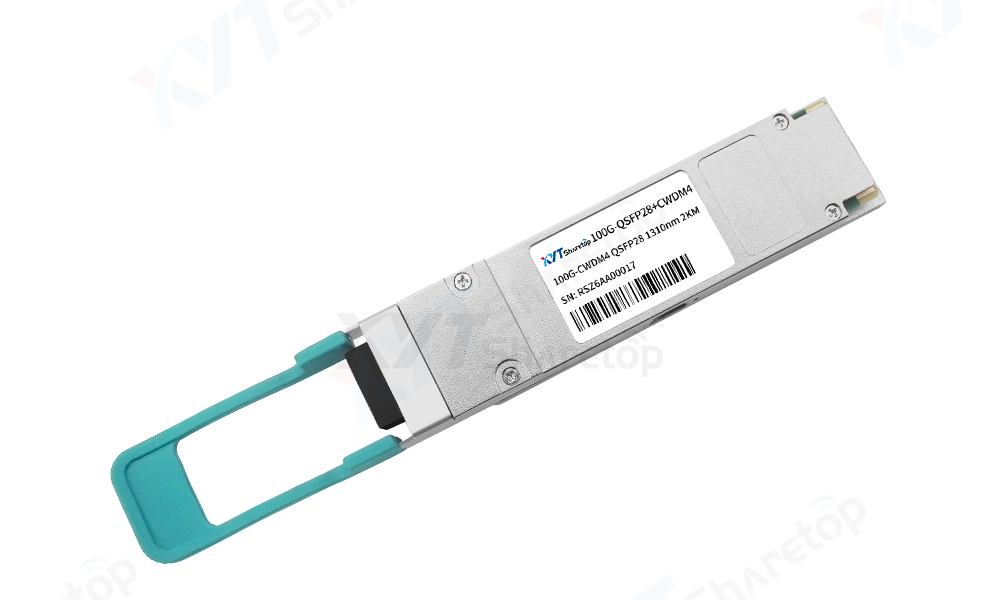

The 100g qsfp28 cwdm4 module launched by xianyitong technology adopts 4-way 25g NRZ wavelength division multiplexing technology (cwdm4), and the interface is duplex LC. Transmission can be realized only by two core single-mode optical fibers. The transmission distance through single-mode optical fibers can be up to 2km or 10km (FEC needs to be turned on). Based on the overall cost, 2km specifications are commonly used.

- Product Features -

1. Adopt hot pluggable qsfp28 package;

2.4 channel full duplex transceiver integrated module;

3.4-channel uncooled CWDM DFB laser and pin Rosa;

4. Comply with qsfp28 MSA and cwdm4 MSA standards;

5. Compatible with Infiniband EDR standard;

6. The maximum speed is up to 103.125gbps;

7. The transmission distance through single-mode optical fiber can be up to 2km or 10km (FEC needs to be turned on);

8. The maximum power consumption is less than 3.5W;

9. Double LC optical port;

10. Operating temperature range from 0 to 70 ° C or - 40 to + 85 ° C;

11. Power supply voltage: 3.3V;

12. Comply with ROHS environmental protection standard (lead-free);

- Product Specification -

1. High bandwidth interconnection of data center;

2. 100g cwdm4 Ethernet;

3.100g short distance transmission;

Specification
