- Products description -

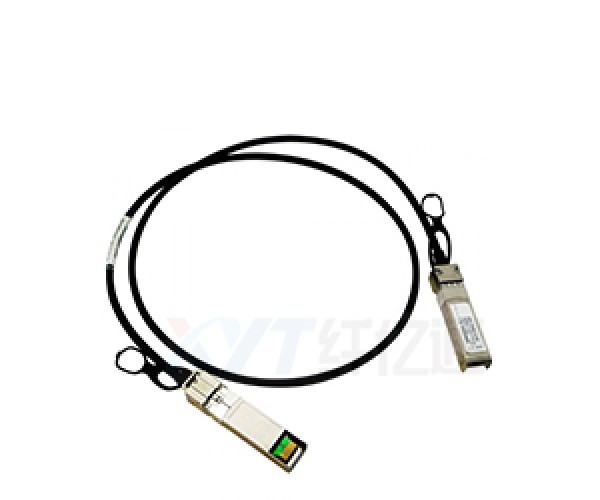

The SFP+cable assemblies are high performance,cost effective I/O solutions for 10Gb Ethernet and 10G fibre Channel applications.SFP+copper modules allow hardware manufactures to achieve high port density,configurability and utilization at a very low cast and reduced power budget.The high speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry standard requirements for performance and reliability.
- Product Features -
1．Support for multi-gigabit data rates up to 10.5Gbps
2．Data rates backward compatible to 1Gbps
3．Support for 1x,2x,4x and 8x Fibre Channel data rates
4．Hot-pluggable SFP 20PIN footprint
5．I/O Connector designed for high speed differential signal applications
6．Improved Pluggable FormFactor(IPF)compliant for enhanced EMI/EMC performance
7．Low Power Consumption<0.5W
8．Power Supply:+3.3V
9．Compatible to SFP+MSA
10．Temperature Range:0~70 °C
11．RoHS Compatible
- Product Specification -
1．High capacity I/O in Storage Area Networks,Network Attached Storage,and Storage Servers
2．Switched fabric I/O such as ultra high bandwidth switches and routers
3．Data center cabling infrastructure
4．High density connections between networking equipment
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit |
Storage Ambient Temperature | -40 | +85 | °C | ||
Operating Case Temperature | Tc | 0 | +70 | °C | |
Power Supply Voltage | VCC3 | 3.14 | 3.3 | 3.47 | V |
Power Dissipation | PD | 1.5 | W |
Systems
Performance | 10.3125 Gpbs(per channel)line speed,full duplex Bit error rate:better than 10E-12 |
Media | Hot-pluggable,industry-standard Small Form-Factor Pluggable(QSFP+)copper cable,available up to 10m |
Operating parameters | Supply voltage:3.3V Power consumption(per end):max 1.5W |
Ordering information
| Parameter | |||||||
| Type | Rate | Wavelength | Transmission distance | Transitter Power | Receiver Sensitivity | Diode | Interface |
| 40G QSFP+ | 40Gb/s | 850nm | 30m | -6～3 | ≤-5dBm | VCSEL | MPO |
| 100m | -8～1 | ≤-13dBm | VCSEL | MPO | |||
| 150m | -8～1 | ≤-13dBm | VCSEL | MPO | |||
| 400m | -8～1 | ≤-13dBm | VCSEL | MPO | |||
| BiDi 850nm/900nm | 150m | -8～1 | ≤-13dBm | VCSEL | LC | ||
| BiDi 832nm/918nm | 150m | -8～1 | ≤-13dBm | VCSEL | LC | ||
| 1310nm | 500m | -8～1 | ≤-13dBm | DFB | LC | ||
| 1km | -6～2 | ≤-12dBm | FP | MPO | |||
| 2km | -6～2 | ≤-12dBm | DFB | LC | |||
| 10km | -6～2 | ≤-12dBm | DFB | LC | |||
| 40km | -1～3 | ≤-14dBm | DFB | LC | |||
|
