- Products description -
EDFA(Erbium Doped Fiber Amplifier)is a representative one in the optical amplifier.As the EDFA’s wavelength is 1550nm,it is in line with the low-loss band of fiber and its technology has been relatively mature,so widely used.
High quality:adopt multimode large power pump laser,power is optimized reasonably by software,and can most unlimited reduce NF of EDFA,it is comparable with EDFA.The feature can make system achieve excellent CNR.

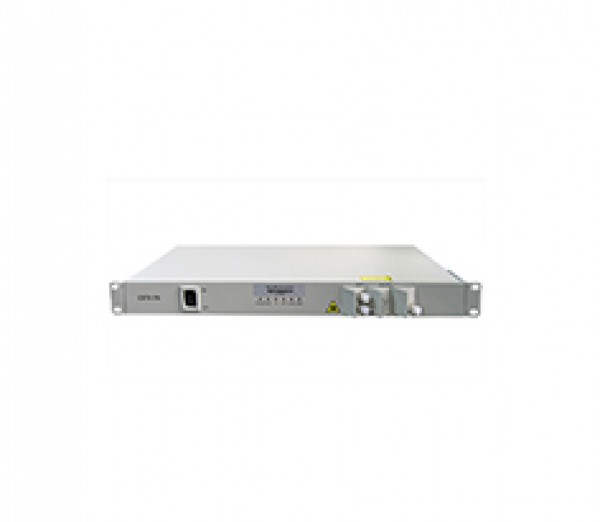

Reliability:The 19"1U standard rack,built-in high-performance dual switching power supply,it can work at 85 ∽ 265Vac City Network Voltage,As well as an optional DC48V power supply(reservations required);chassis cooling can be automatic control by temperature.
Intuition:The pump laser is the most expensive machine components,machine equipped with microprocessor monitors the working state of the laser,the panel LCD window displays the operating parameters.
Network type:Select All-piece status monitoring transponder guarantees to meet the national standard and be compatible with the SCTE HMS standard,it enables network management to monitor capabilities.
The plug is draw-out type:switching power supply is draw-out type with aluminum profile structure,it helps greatly to cooling and replacement.Besides it can make dual supply cold-heat backup.
- Product Features -
High output power
Output power tunable
Low NF
RS-485、RS-232 network interface
Multi power supply(Rack Mount);
AC：220V-110V；DC：-48V
- Product Specification -
CATV system
Access network
Parameter | Unit | Min | Typ | Max |
Operating Wavelength | nm | 1530 | 1550 | 1560 |
Input Power | dBm | -3 | 10 | |
Output Power | dBm | 24 | ||
Noise Figure | dB | 5 | ||
Input/Output Isolation | dB | 30 | ||
Input/Output Return Loss | dB | 60 | ||
Voltage | Rack Mount:90~260V AC,-48V DC | |||
Module Type:5V DC | ||||
Dimension | mm | Rack Mount:(W x L x H) | ||
482.6 x 319 x 43.6 | ||||
Module Type:(W x L x H) | ||||
150 x 125 x 24 | ||||
SDH EDFA
Parameter | Unit | Min | Typ | Max | |
Operating Wavelength | nm | 1530 | 1550 | 1565 | |
Input Power | 2.5G or below | dBm | -6 | 4 | |
10G | -10 | 4 | |||
Output Power | dBm | 19 | |||
Output Tunable Range | dB | 6 | |||
Noise Figure | dB | 5 | |||
Input/Output Isolation | dB | 30 | |||
Input/Output Return Loss | dB | 45 | |||
Ordering Information
XYT-EDFA | SO | X | X | XX/XX | X |
Package SO=1U rack-mount package | Amplifier Type B=Poweramplifier P=Preamplifier L=Line amplifier | Application RW=Red-Band DWDM CW32=C-Band 32CHDWDM CW40=C-Band 40CHDWDM LW=L-Band DWDM S=Digital transmission C=CATV | Rated output power(dBm)/Gain(dB) XX/XX=custom Example: 16/20=output16dBm/Gain20db | Interface Type 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC | |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
