- Products description -

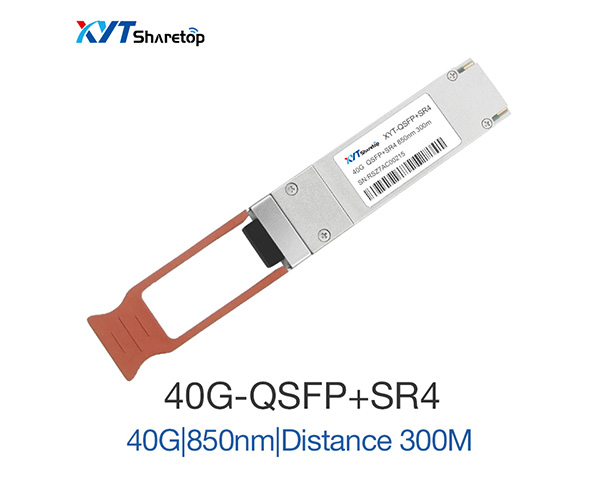

Sharetop’s QSFP+_40G_SR4_100m transceiver is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps bandwidth.one version is Each lane can operate at 10.5Gbps up to100m using OM3 or 150m using OM4 Multimode fiber,another version is Each lane can operate at 10.5Gbps up to300m using OM3 or 400m using OM4 Multimode fiber These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
- Product Features -
1. Supports 1.06 to 10.5Gb/s bit rates per Channel
2. Four-Channel ,1x12 MPO receptacle
3. Hot pluggable QSFP+ form factor
4. VCSEL 850nm array Technology
5. Applicable for 100m&300m on OM3 MMF,150m&400m on OM4 MMF.
6. Built-in digital diagnostic functions
7. Low power consumption, < 1.5W
8. Unretimed XLPPI electrical interface
9. Operating case temperature: -5°C to 80 °C
- Product Specification -
1. 40GBASE-SR4 40G Ethernet
2. Datacom/Telecom switch & router connections
3. Data Aggregation and Backplane Applications
4. Proprietary Protocol and Density Applications
5. Infiniband transmission at 4CH SDR, DDR and QDR
6. Other optical links
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
Transmitter | ||||||
Operating Wavelength | λ | 840 | 850 | 860 | nm | |
Ave. output power (Enabled) | PAVE | -7.5 | +2.5 | dBm | ||
Difference in launch power between any two lanes (OMA) | DL | 4 | dB | |||
Extinction Ratio | ER | 3 | dB | |||
Peak power, each lane | PP | 4 | dBm | |||
Dispersion penalty, each lane | TDP | 3.5 | dB | |||
Average launch power of OFF transmitter, each lane | POFF | -30 | dB | |||
Eye Mask coordinates: X1, X2, X3, Y1, Y2, Y3 | SPECIFICATION VALUES 0.23, 0.34, 0.43, 0.27, 0.35, 0.4 | Hit Ratio = 5x10-5 | ||||
Receiver | ||||||
Operating Wavelength | λc | 840 | 850 | 860 | nm | |
Stressed receiver sensitivity in OMA(OLSQ854XM-CDS1) | -5.4 | dBm | ||||
Stressed receiver sensitivity in OMA(OLSQ854XM-CDS3) | PSEN2 | -7.5 | 3 | |||
Average Receive Power,each lane | PAVE | -11 | +2.4 | dBm | ||
Receiver Reflectance | Rrx | -12 | dB | |||
LOS Assert | Pa | -30 | dBm | |||
LOS De-assert | Pd | -9 | dBm | |||
LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured with conformance test signal at TP3 for BER = 10-12 Receiver Characteristics
Ordering Information
Part Number | Description |
XYT-QSFP+_40G_SR4_100m | QSFP+,40Gb/s, 850nm, 100m, 0~70℃ MPO |
XYT-QSFP+_40G_SR4_100m | QSFP+,40Gb/s, 850nm, 300m, 0~70℃ MPO |
|
