- Products description -

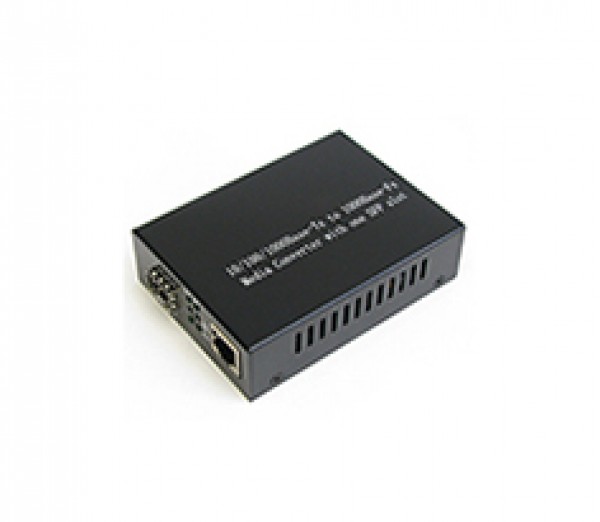

Fiber-Optic Media Converter series is a kind of 10/100/1000MMbps intelligent adaptive fast Ethernet media converter.It can implement date transmission between twisted pair electrical signals and optical signals which are the two type of network connection media.This type of media converter can extend the transmission distance of a network from 10/100/1000M over copper wires to 120KM in which there is no help of any other converter.It should be installed in 16 rack media converter when chassis used.
Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications,technologies and future growth.Instead of costly,across-the-board upgrades,media converters can extend the productive life of the existing cabling as well as the active equipment.
Single use to achieve a single,multi-mode fiber mode conversion,multi-mode transmission distance of 2 km single-mode transmission distances of up to 120 kilometers,the complete working status indicator,working status,built-in professional switching power supply,security and stability.
- Product Features -
1.AutoCross?:Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.
2.Link Pass Through:Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal.
3.Automatic Link Restoration:The media converters will automatically re-establish link in all network conditions.
- Product Specification -
Telecommunications,electricity,radio and television,transportation,industrial,medical,education,aerospace and computer and broadband access and other industries,and is to develop a broader and deeper.
Parameter | Specifications |
Access mode | 10/100/1000Mbps |
Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
Wavelength | 850nm/1310nm/1550nm |
Transmission distance | Dual-fiber multi-mode:2Km;dual-fiber single-mode:25/40/60/80/100/120Km;single-fiber single-mode:25/40/60/80/100Km |
Category-5 twisted pair:100m | |
Port | One RJ45 connector,connected to STP/UTP category-5 twisted pair |
One fiber port:Multi-mode-SC or ST(fiber size:50,62.5/125?m) | |
Single mode-SC/FC fiber port(fiber size:9/125?m) | |
Single-fiber single-mode-SC/FC fiber port(fiber size:9/125?m) | |
Conversion mode | Medium conversion,storing and forwarding |
MAC address table | I K |
Buffer space | 1Mbit |
Flow control | Full duplex state:flow control;half duplex state:back pressure mode |
Delay | 9.6us |
Bit error rate | <1/1000000000 |
MTBF | 100,000 hours |
LED | Power TX link(fiber link action),TP LINK1000,TP LINK100,TP ACT) |
FDX(FX full duplex mode),FX100(Fiber,with a transmission rate of 100M) | |
TP1/2/3/4 LINK/ACT(1/2/3/4-port twisted pairs connection action) | |
TP1/2/3/4100(1/2/3/4-port twisted pairs,with a transmission rate of 100M) | |
Power | AC220 0.5A/PC-48(builtin) |
Power consumption | 5W |
Operating temperature | -10℃~55?C |
Operating humidity | 5%~90% |
Storage temperature | -40℃~70?C |
Storage humidity | 5%~90%(non-condensing) |
Dimensions | 140mm*111*30mm(in)95 × 70 × 26mm(out) |
10/100/1000M Order information | |||||||
Model | Working wavelength | Fiber port | Electrical port | Fiber model | TX power(dBm) | RX Power(dBm) | Transmission |
XYT-550 | 850nm | SC | RJ-45 | multi model dual fiber | -17~-12 | -20 | 550m |
XYT-2 | 1310 nm | SC | RJ-45 | multi model dual fiber | -17~-12 | -20 | 2km |
XYT-10 | 1310 nm | SC | RJ-45 | single model dual fiber | -6~-12 | -21 | 10km |
XYT-20 | 1310 nm | SC | RJ-45 | single model dual fiber | -3~-8 | -23 | 20km |
XYT-40 | 1550 nm | SC | RJ-15 | single model dual fiber | -3~-0 | -25 | 40km |
XYT-80 | 1550 nm | SC | RJ-45 | single model dual fiber | 1 | -27 | 80km |
XYT-10A/B | 1310 nm | SC | RJ-45 | single model single fiber | -10~-5 | -20 | 10km |
XYT-20A/B | 1310 nm | SC | RJ-45 | single model single fiber | -8~-3 | -23 | 20km |
XYT-40A/B | 1550 nm | SC | RJ-15 | single model single fiber | -3~-0 | -23 | 40km |
XYT-80A/B | 1550 nm | SC | RJ-45 | single model single fiber | -3~-0 | -23 | 60km |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
