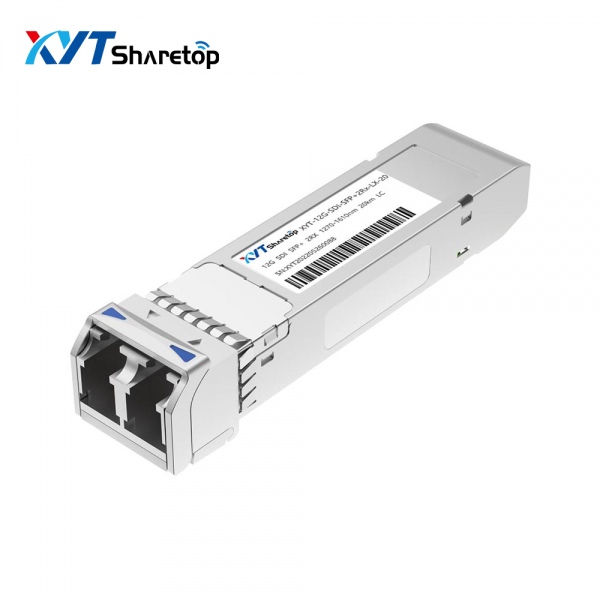

12G-SDI Video Transmission Double Receiving Module

Category:XYT-12G-SDI-SFP+2Rx-LX-20
Code:12G-SDI

 - Products description -


   With the continuous development of high-definition photography and 4K ultra-high definition video transmission, high-definition video optical transmission has become particularly important. In addition, in recent years, due to the impact of the epidemic, many of people's lives are based on the Internet, such as students' online classes and defense at home, hospitals' implementation of telemedicine, fans' online watching sports events, fans' watching online concerts, etc., which have greatly promoted the development of high-definition video transmission. To realize the transmission of these high-definition videos, SDI optical module is required.


   SDI optical module is different from our common SFP ordinary digital optical module in many aspects except that the package is the same: SDI optical module is dedicated to HD video transmission, and its video data stream encoding method is different from the telecommunications data. In addition to the different rates, it also needs to achieve a "sick code test" of the video standard.


   SDI optical modules launched by xianyitong technology include 3g-sdi, 6g-sdi and 12g-sdi according to different speeds. This model is a 12g-sdi dual receiver module, which is compatible with sd-sdi, HD-SDI, 3g-sdi, 6g-sdi and 12g-sdi. The transmission distance is 20km. The product features are as follows:



 - Product Features -


1. adopt hot pluggable sfp+ package;

2. dual channel pin receiver (without transmitter);

3. conform to SMPTE St 297/2081/2082 standard;

4. support the video sick mode of sd-sdi, HD-SDI, 3g-sdi, 6g-sdi and 12g-sdi;

5. the maximum speed is up to 11.88gbps;

6. the maximum transmission distance through a single single-mode fiber can reach 20km;

7. the maximum power consumption is less than 1W;

8. metal shell to reduce EMI;

9. double LC optical port;

10. commercial grade operating temperature range from 0 to 70 ℃;

11. power supply voltage: 3.3V;

12. comply with ROHS environmental protection standard (lead-free);


 - Product Specification -


1. HD video transmission;

2. optical fiber extender;

3. high definition photographic transmission;

Specification

Sale service

Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free.
Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
