- Products description -

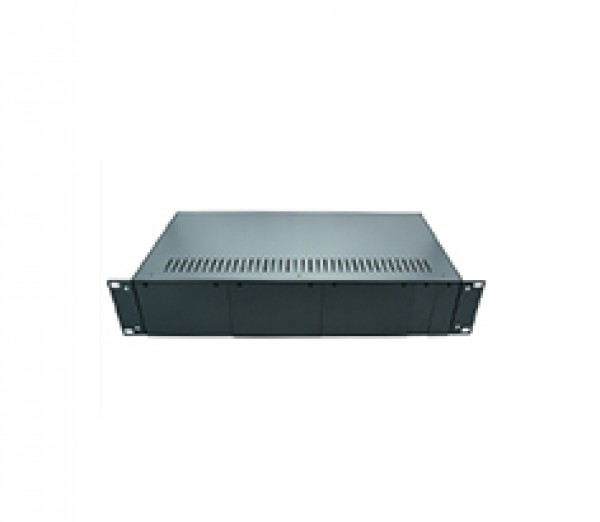

The Chassis-based Media Converters include a number of independent media converters and a chassis capable of housing up to 14 media converters.You can start with single media converters,each equipped with its own housing and AC power adapter.When your requirements grow big,you can mount a chassis in your equipment rack and install your media converters in the chassis.The housing of each media converter can be easily removed,and the media converter PC board can be slid into the chassis.
The chassis lets you install multiple media converters in an equipment rack together with the network devices for which they provide media conversion.This provides for space saving,and the cabling will look neat.The chassis comes with its own universal AC to DC power supply.For maximum power availability,an optional redundant power supply is available for installation in chassis.
- Product Features -
1.Surporting:AC220V and DC-48V two kinds of power
2.Surporting:different types of media conwerter work together.
3.Surporting:Hot-swappable
4.Slots:14
5.LED:Power
6.Power in:AC100V~260V in or DC48V(be choosed)
7.Power out:DC5V,12A
8.Power number:one or two(be choosed)
9.Demension:
10.Chassis demension:
11.Rack-type media converter dimension:
12.Operating temperature:0~40
13.Storgae temperature:20
14.Operating humidity:5%-95%
- Product Specification -
Telecommunications,electricity,radio and television,transportation,industrial,medical,education,aerospace and computer and broadband access and other industries,and is to develop a broader and deeper.
Number of the Slot | 14 |
Media Converter for the 14 Slots Chassis | One Fiber Port+1xRJ45 Standalone Ethernet Media Converter |
One Fiber Port+2xRJ45 Standalone Ethernet Media Converter | |
One Fiber Port+1xRJ45 Standalone Gigabit Media Converter | |
Power Supply | AC 100 V~260 V,50~60Hz;or DC 48V |
Operating Temperature | 0℃~+50℃ |
Storage Temperature | -20℃~+85℃ |
Relative Humidity | 5%~95% |
Order information
Model | Product description |
HS-14-1A | 14 slots with one power,220V power in |
HS-14-1B | 14 slots with one power,-48V |
HS-14-2B | 14 slots with double powers,-48V |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
