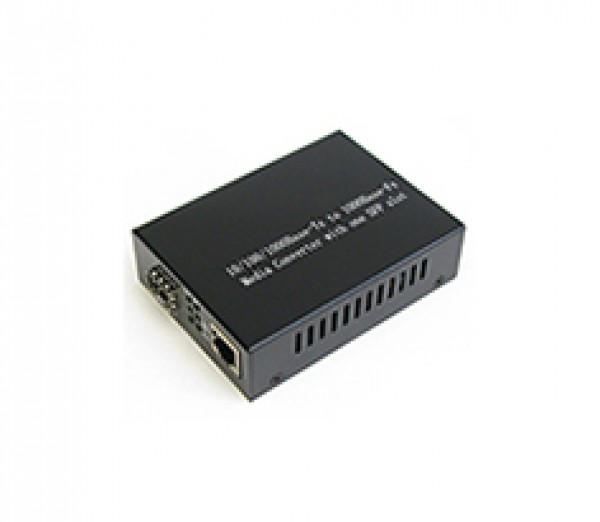

10/100M Media Converter

Category:10/100M Fiber Media Converter
Code:Fiber Passives

 - Products description -


  Fiber-Optic Media Converter series is a kind of 10/100/1000MMbps intelligent adaptive fast Ethernet media converter.It can implement date transmission between twisted pair electrical signals and optical signals which are the two type of network connection media.This type of media converter can extend the transmission distance of a network from 10/100/1000M over copper wires to 120KM in which there is no help of any other converter.It should be installed in 16 rack media converter when chassis used.


  Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications,technologies and future growth.Instead of costly,across-the-board upgrades,media converters can extend the productive life of the existing cabling as well as the active equipment.


  Single use to achieve a single,multi-mode fiber mode conversion,multi-mode transmission distance of 2 km single-mode transmission distances of up to 120 kilometers,the complete working status indicator,working status,built-in professional switching power supply,security and stability.


 - Product Features -


1.AutoCross?:Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.

2.Link Pass Through:Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal.

3.Automatic Link Restoration:The media converters will automatically re-establish link in all network conditions.


 - Product Specification -


Telecommunications,electricity,radio and television,transportation,industrial,medical,education,aerospace and computer and broadband access and other industries,and is to develop a broader and deeper.

Specification

Parameter

Specifications

Access mode

10/100Mbps

Standard

IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree

Wavelength

850nm/1310nm/1550nm

Transmission distance

Dual-fiber multi-mode:2Km;dual-fiber single-mode:25/40/60/80/100/120Km;single-fiber single-mode:25/40/60/80/100Km

Category-5 twisted pair:100m

Port

One RJ45 connector,connected to STP/UTP category-5 twisted pair

One fiber port:Multi-mode-SC or ST(fiber size:50,62.5/125?m)

Single mode-SC/FC fiber port(fiber size:9/125?m)

Single-fiber single-mode -SC/FC fiber port(fiber size:9/125?m)

Conversion mode

Medium conversion,storing and forwarding

MAC address table

I K

Buffer space

1Mbit

Flow control

Full duplex state:flow control;half duplex state:back pressure mode

Delay

9.6us

Bit error rate

<1/1000000000

MTBF

100,000 hours

LED

Power TX link(fiber link action),TP LINK1000,TP LINK100,TP ACT)

FDX(FX full duplex mode),FX100(Fiber,with a transmission rate of 100M)

TP1/2/3/4 LINK/ACT(1/2/3/4-port twisted pairs connection action)

TP1/2/3/4100(1/2/3/4-port twisted pairs,with a transmission rate of 100M)

Power

AC220 0.5A/PC-48(builtin)

Power consumption

5W

Operating temperature

-10℃~55?C

Operating humidity

5%~90%

Storage temperature

-40℃~70?C

Storage humidity

5%~90%(non-condensing)

Dimensions

140mm*111*30mm(in)95 × 70 × 26mm(out)

Order information

Model

Working wavelength

Fiber

Electrical port

Fiber model

Tx power(dBm)

Rx power(dBm)

Transmission

distance

XYT-2

1310nm

SC

RJ-45

Multi-mode

-22 to-12

-30

2km

XYT-25S

1310nm FP

SC/FC/ST

RJ-45

Single mode

-15 to-8

-37

25km

XYT-40S

1310nm FP

SC/FC/ST

RJ-45

Single mode

-8 to-3

-37

40km

XYT60S

1310nm FP

SC/FC/ST

RJ-45

Single mode

-3 to 0

-37

60km

XYT-80S

1550nm DFB

SC/FC/ST

RJ-45

Single mode

-8 to-3

-40

80km

XYT-100S

1550nm DFB

SC/FC/ST

RJ-45

Single mode

-3 to 0

-40

100km

Sale service

Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free.
Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
