- Products description -

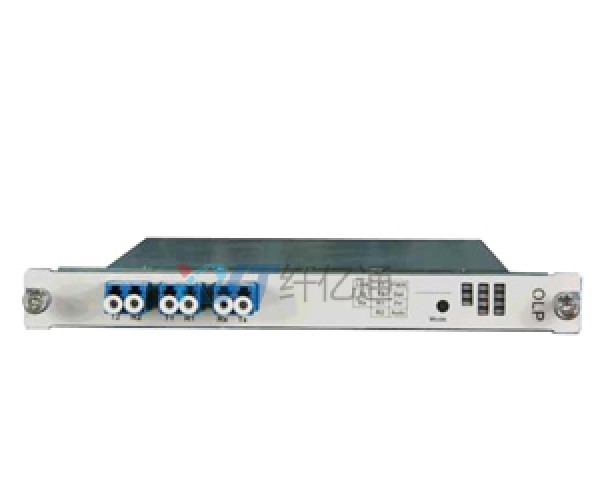

OLP Optical Protection Board is a protection system developed by Sharetop Technology Co., Ltd. for optical line backup. It adopts advanced optical path automatic switching module, which is an optical device used in optical fiber communication to switch optical paths. Automatically identify the signal states of the optical signals of the primary and backup optical systems, and perform instantaneous switching of the optical paths so as to protect the primary optical cable from full-impedance failure and protect the system from operating normally and improve the service quality of operators. OLP optical line protection board is widely used in a variety of trunk main and backup protection and a variety of optical switching network. Its advantage is that optical signals can be directly converted into light in the use of optical circuits, small size, economic security, it is used in many optical transmission.
The OLP1: 1 type protection board is designed for protection boards with low loss and redundancy in optical communication lines. The OLP1: 1 type protection board uses the selective receiving and emitting mode to inject light into the backup line to monitor whether there is a fault on the backup line. When the working optical fiber occurs Fault, the receiver and the sender quickly switch to the standby fiber, to ensure unobstructed communication.
- Product Features -
Support single-mode, multi-mode optical line protection.
Support 1 + 1 (dual sending and receiving) protection, 1: 1 (choose the election election) protection.
Support bi-fiber bidirectional and single fiber bidirectional protection.
Support automatic and manual work mode.
Support fiber monitoring
With a wide optical power monitoring range: -50dBm ~ + 23dBm.
With a short optical path protection switching time: ≤ 20ms.
Support power-down optical path state keeping function.
Support local and remote control and SNMP network management.
Performance | Parameters | ||
wavelength range | 1310±50nm and 1550±50nm | ||
Dynamic range of optical power | TX: | ＋25～-30 dBm | |
RX: | ＋10～-45 dBm | ||
Insertion loss | 1+1 protected | TX | ≤ 4.0dB |
RX | ≤ 1.5dB | ||
1:1 protected | ≤ 1.5dB | ||
Return loss | ≥45dB | ||
Crosstalk | ≥55dB | ||
Optical power resolution | ≤0.01dB | ||
Optical power measurement accur | ≤0.5dB（＋25 dBm ～ -40dBm ） | ||
Wavelength dependent loss | ≤0.25dB | ||
Polarization dependent loss | ≤0.1dB | ||
Switching time | ≤15ms | ||
Working life | >107 times | ||
Ordering Information:
Optical signal type | Protection type | Interface |
S：single-mod | 1：1+1 | 1:LC/UPC |
M：multi-mode | 2：1:1 | 2:LC/APC |
3：1:1(with backup fiber) | 3:SC/UPC | |
4：1:1(Amplifier) | 4:SC/APC | |
5：customized |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
