- Products description -

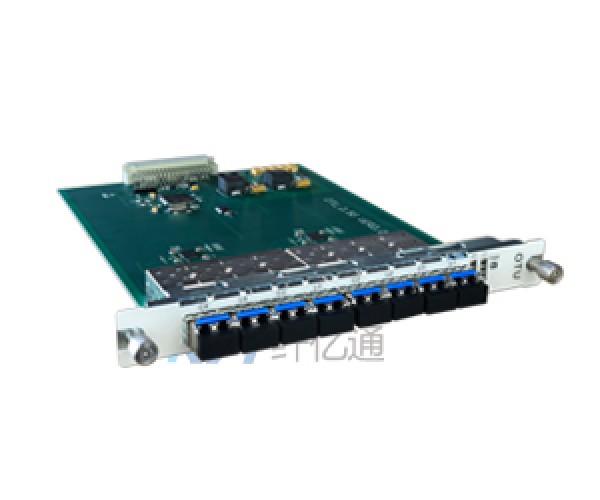

OTU interface card is Sharetop Technology Co.,Ltd. product , It's fiber optic link wavelength converter (optic signal amplifier) . the principle is optic-electrical-optic , re-start the optical signal, achieve the optic signal amplifier and converter . cooperation with cwdm/dwdm can achieved WDM transmission system . Especially suitable for 125M/155M/622M/1.25G/2.5G/4G SDH/SONET, Ethernet and other optic telecommunication systems . It provides a fast and low-cost transmission solution for optical fiber transmission lines with shortages of fiber resources.
- Product Features -
Support FEC function, can optimize the output, DDM signal monitoring, link detection (no rx not tx)
Support CDR function, can optimize the output, DDM signal monitoring, no signal shut off the function.
Support 4-service 125Mbit / s ~ 11.3Gbit / s Any rate of bidirectional service access (single card max support 64)
Support 8-service 125Mbit / s ~ 11.3Gbit / s any rate of unidirectional service access (single card max supports 128)
system parameter | Module type ：10Gbps (SFP+) | |||
Transmission distance [km] | 2 | 10 | 40 | 80 |
Center wavelength [nm] | 850/1310 | 1290~1330 | CWDM/DWDM | CWDM/DWDM |
Max spectral bandwidth [nm] | 1 | 1 | 1 | 1 |
SMSR [dB] | - | 30 | 30 | 30 |
output power [dBm] | -7 ~ -1 | -6 ~ -1 | -1 ~ 2 | 0 ~ 4 |
Extinction ratio [dB] | > 3 | > 6 | > 8.2 | > 9 |
Rx laser type | PIN | PIN | PIN | APD |
Mini load [dBm] | -3 | 0 | -9 | -9 |
Receive sensitivity [dBm] | < -10 | < -14 | < -16 | <-24 |
Max dispersion allowance[ps/nm] | n.a. | 35 | 800 | 1600 |
Optical Path Penalty [dB] | 1 | 1 | 1 | 2 |
Maximum return loss [dB] | -27 | -27 | -27 | -27 |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
