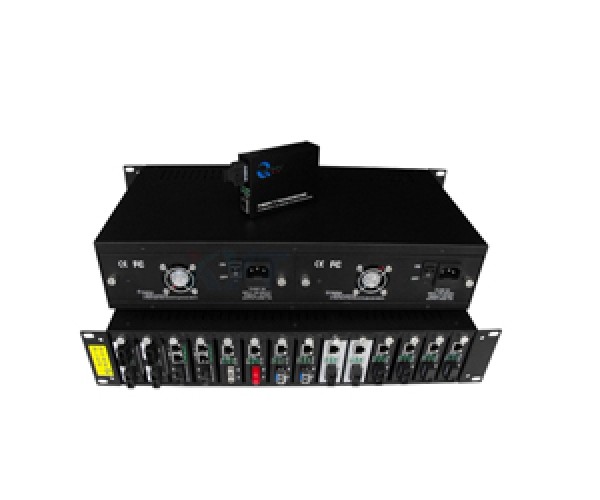

2U OEO optical eletrical optical
- Products description -
XYT-1000 series OEO converters are used for re-amplifying and re-shaping the signals in the transmission process.It can save optical fiber resources and networking cost effectively,and solves the problem that the transmission distance is too long to transmit.With advantages of small volume optical signal,economy and safety,convenient construction and etc,it is widely used in various optical transmission fields and long-distance trunk transmission.
Fiber-to-Fiber media converters extend network distance by converting wavelengths(1310 to 1550),amplifying optical power. transponders as re-generators are also an optical – electrical – optical(O-E-O)converter with electrical amplification of the signal by FEC to realize long distances fiber transmissio.
XYT transponders are protocol and rate-transparent fiber media converters that support SFP,SFP+and XFP transceivers with data rates up to 10Gpbs,and our transponders provide seamless integration of different fiber types by converting multi-mode fiber to single-mode fiber,and dual fiber to single-fiber. Chassis is a 19-Inch rack mountable conversion center,capable of serving up to 16 FHC media conversion modules.In addition to the internal power supply,a back up supply is available as an optional extra.This unit and all FHC conversion modules are CE and FCC-Class approved and they also conform to CCITT specifications.
- Product Features -
1.Versatile chassis for multiple converter installations
2.Fourteen/Sixteen front panel slots for FHC Media Converters
3.19-inch Rack Mount
4.Optional redundant power supply
5.Plug and Play Operation
6.LED Indication for Primary and Secondary Power Supplies
7.LED Indication for Converters
8.Metal Case
- Product Specification -
1.Conversion between Multi-mode and Single-mode
2.Conversion between Dual fiber and Single fiber
3.Conversion between different wavelength
Diagnostic LED | MB,MN |
Safety Standards | UL,CSA,FCC Part 15 Class B,CE |
Number of Ports | 14/16 slots for FHC-1000 Series media converter |
Dimension | 294*283*100 mm(WxDxH) |
Weight | 5 Kg(Net Weight) |
Operating,Power,Environment | Power:Input100-240V,150W,50-60Hz |
Redundant Power(Optional):Input100-240V,150W,50-60Hz | |
Operating Temperature:0oC-+50oC | |
Storage Temperature:-40oC-+70oC | |
Humidity:5-90%non condensing |
Ordering Information
XYT-OEO | Device type | Rate | Interface Type | Distance relay | Wavelength |
1=Card 2=individua (AC220V) 3=individua (DC-48V) 4=individua (DC-24V | 0=155M 1=1.25G 2=2.5G 3=10G 4=40G X=Customize | 1=LC 2=SC 3=FC | X1=Left to X2=Right to 1=40KM 2=60KM 3=80KM 4=100KM 5=120KM | XX/XX=custom Example:31/55=1310nm/1550nm | |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
