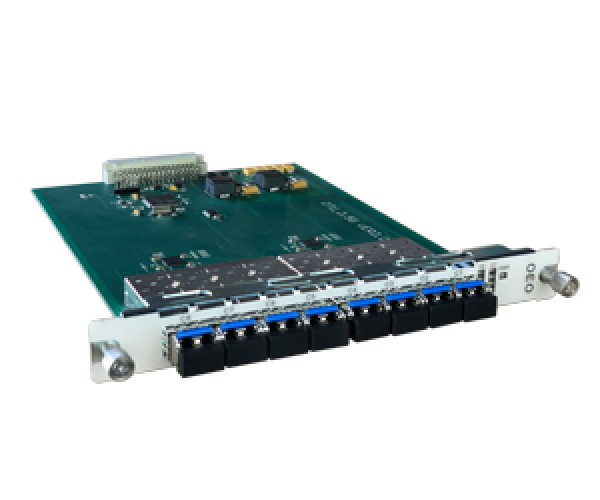

10G SFP+ OEO interface card

Category:XYT-1600-OEO
Code:Service Card

 - Products description -


 OEO interface card is Sharetop Technology Co.,Ltd. product , It's fiber optic link wavelength converter (optic signal amplifier) . the principle is optic-electrical-optic  , re-start the optical signal, achieve the  optic signal amplifier and converter .  cooperation with cwdm/dwdm can achieved WDM transmission system . Especially suitable for  125M/155M/622M/1.25G/2.5G/4G/10G SDH/SONET, Ethernet and other optic telecommunication systems . It provides a fast and low-cost transmission solution for optical fiber transmission lines with shortages of fiber resources.


 - Product Features -


Support single multi-mode conversion, optical power amplification etc. Applications

Support unidirectional relay amplification or bidirectional relay amplification

Supports 4 service bidirectional or 8 service unidirectional 10Gbit / s at any rate relay amplification

Support NMU function ,support Telnet, Web and SNMP management mode

Support EOLP function through network management settings (optical line protection).

Support CDR function, can optimize the output, DDM signal monitoring, no signal shut off the function.

Support software close the port.

Specification

System parameter

Module type10Gbps   (SFP+)

Transmission   distance [km]

2

10

40

80

Center   wavelength [nm]

850/1310

1290~1330

CWDM/DWDM

CWDM/DWDM

Max   spectral bandwidth [nm]

1

1

1

1

SMSR [dB]

-

30

30

30

output   power [dBm]

-7 ~ -1

-6 ~ -1

-1 ~ 2

0 ~ 4

Extinction   ratio  [dB]

> 3

> 6

> 8.2

> 9

Receive   laser

PIN

PIN

PIN

APD

Mini    load [dBm]

-3

0

-9

-9

Receive   sensitivity [dBm]

< -10

< -14

< -16

<-24

Max   dispersion allowance[ps/nm]

n.a.

35

800

1600

Optical   Path Penalty [dB]

1

1

1

2

Maximum   return loss[dB]

-27

-27

-27

-27




Sale service

Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free.
Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
