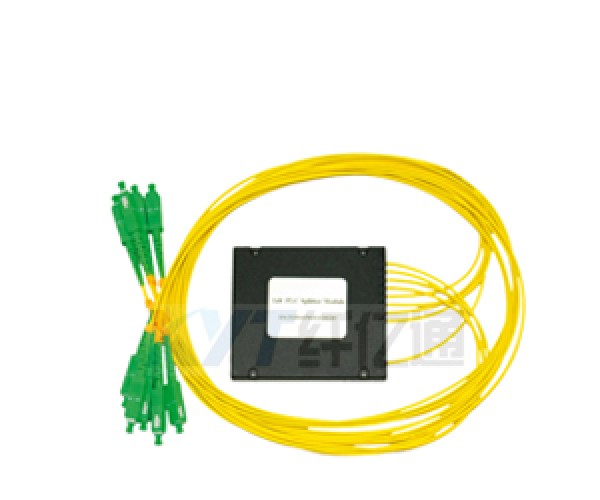

1xN ABS PLC Splitter

Category:XYT-1XN-ABS-OPSM
Code:ABS PLC Splitter

 - Products description -


XYT-TECH Sharetop Planar lightwave circuit splitter(PLC Splitter)is a type of optical power management device that is fabricated using silica optical waveguide technology.It features small size,high reliability,wide operating wavelength range and good channel-to-channel uniformity,and is widely used in PON(EPON/GPON)networks to realize optical signal power splitting.We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.All PLC Splitter products meet GR-1209-CORE and GR-1221-CORE requirements.


 - Product Features -


1.Low insertion loss and low PDL
2.High channel counts
3.Exceptional reliability and stability
4.Wide operating wavelength
5.Wide operating temperature
6.Compact design


 - Product Specification -


1.FTTX Systems
2.LAN,WAN and metro networks
3.Analog/Digital passive optical networks
4.CATV networks
5.Other applications in fiber optic systems

Specification

Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength(nm)

1260~1650

Fiber Type

G657A1 or customer specified

Insertion Loss(dB)(P/S Grade)

3.8/4.0

7.1/7.3

10.2/10.5

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity(dB)

0.4

0.6

0.8

1.2

1.5

2

Polarization Dependent Loss(dB)

0.2

0.2

0.2

0.25

0.3

0.35

Return Loss(dB)(P/S Grade)

55/50

55/50

55/50

55/50

55/50

55/50

Directivity(dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability

0.4

0.4

0.4

0.5

0.5

0.5

(-40~85℃)(dB)

Operating Temperature(℃)

-40~85

Storage Temperature(℃)

-40~85

Module Dimension(mm)

100×80×10

100×80×10

100×80×10

120×80×18

140×115×18

140×115×18

1.Specified without connectors.

2.Add an additional 0.15dB loss per connector.


Ordering information

PLC

Port

Input Pigtall Style

Input Connector

Output Pigtll Style

Fiber Length

Output Connector

Package type

0102=1x2

0104=1x4

0108=1x8

0116=1x16

0132=1x32

0164=1x64

1128=1x128


0=bare fiber

1=900um

Loose tube

2=900umJacket

3=2.0mmcable

4=3.0mmcable

0=none

1=SC/PC

2=SC/APC

3=FC/PC

4=FC/APC

5=ST

6=LC

7=LC/APC

8=E2000

S=Special

0=bare fiber

1=900um

Loose tube

2=900um

Jacket

3=2.0mmcable

4=3.0mmcable

0=0.5m

1=1m

2=1.5m

3=2m

4=3m

5=4m

S=special

0=none

1=SC/PC

2=SC/APC

3=FC/PC

4=FC/APC

5=ST/PC

6=LC/PC

7=LC/APC

8=E2000

S=Special

A=4X4X40

B=4X7X50

C=4X12X60

D=4X7X60

E=6X20X80

F=100X80X10

G=120X80X18

H=140X115X18

I=19”1U Rack

S=Special
