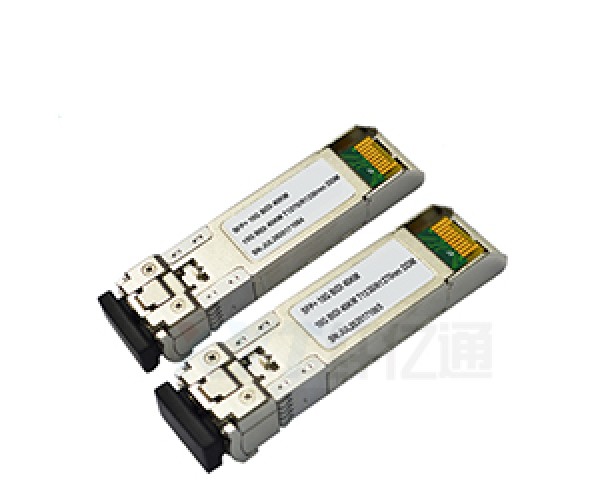

10G SFP+ BIDI 60KM Optic Module

Category:XYT-SFP+BD-T27/T33-60
Code:Single Fiber Module

 - Products description -


The SFP transceivers are high performance,cost effective modules supporting multi-rate of 10Gbps and 60km transmission distance with SMF.The transceiver consists of three sections:a FP laser transmitter,a PIN photodiode integrated with a trans-impedance preamplifier(TIA)and MCU control unit.All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement(MSA)and SFF-8472.For further information,please refer to SFP MSA.


 - Product Features -


1.Up to 10.7Gbps Data Links
2.Single Mode LC Receptacle Bi-directional Transceiver
3.Up to 60km transmission on SMF
4.Power dissipation<1.5W
5.1270nm DFB laser and PIN receiver
6.2-wire interface with integrated Digital Diagnostic monitoring
7.EEPROM with Serial ID Functionality
8.Compliant with SFP+MSA with duplex LC connector
9.Single+3.3V Power Supply
10.Case operating temperature:-5?C~+70?C


 - Product Specification -


1.Gigabit Ethernet
2.Fiber Channel
3.WDM Application
4.Switch to Switch interface
5.Switch backplane applications
6.ATM
7.SONT/SDH/PDH
8.FDDI
9.Other optical transmission system

Specification

Table 1-Optical and Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

1260

1310

1360

nm


Spectral Width(RMS)

λ



4

nm


Average Output Power

Pout

-9


-3

dBm

1

Extinction Ratio

ER

9



dB


Optical Rise/Fall Time(20%~80%)

tr/tf



0.26

ns


Data Input Swing Differential

VIN

400


1800

mV

2

Input Differential Impedance

ZIN

90

100

110

Ω


TX Disable

Disable


2


Vcc

V


Enable


0


0.8

V


TX Fault

Fault


2


Vcc

V


Normal


0


0.8

V


Receiver

Centre Wavelength

λc

1260


1580

nm


Receiver Sensitivity




-23

dBm

3

Receiver Overload


-3



dBm

3

LOS De-Assert

LOSD



-24

dBm


LOS Assert

LOSA

-35



dBm


LOS Hysteresis


1


4

dB


Data Output Swing Differential

Vout

400


1800

mV

4

LOS

High

2


Vcc

V


Low



0.8

V


NOTE:

1.The optical power is launched into SMF.

2.PECL input,internally AC-coupled and terminated.

3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.

4.Internally AC-coupled.



Ordering information

ModleRateWavelengthTransmission DistanceTx PowerRx PowerConnector
XYT-SFP+BX-U/D10Gb/s
1270/133010km-1~-5≤-15
LC
XYT-SFP+BX-U/D10Gb/s1270/133040km0~5≤-16LC
XYT-SFP+BX-U/D10Gb/s1270/133060km0~5≤-20LC
