- Products description -

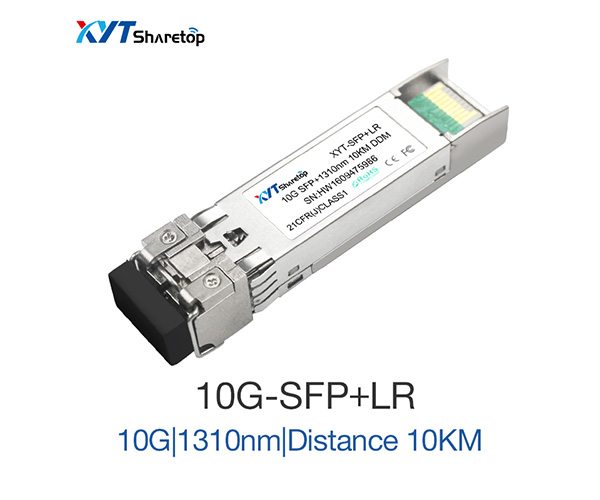

The SFP transceivers are high performance,cost effective modules supporting multi-rate of 10Gbps and 10km transmission distance with SMF.The transceiver consists of three sections:a FP laser transmitter,a PIN photodiode integrated with a trans-impedance preamplifier(TIA)and MCU control unit.All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement(MSA)and SFF-8472.For further information,please refer to SFP MSA.
- Product Features -
Gigabit Ethernet
Fiber Channel
WDM Application
Switch to Switch interface
Switch backplane applications
ATM
SONT/SDH/PDH
FDDI
Other optical transmission system
- Product Specification -
Up to 10.7Gbps Data Links
1.Single Mode LC Receptacle Bi-directional Transceiver
2.Up to 10km transmission on SMF
3.Power dissipation<1.5W
4.1270nm DFB laser and PIN receiver
5.2-wire interface with integrated Digital Diagnostic monitoring
6.EEPROM with Serial ID Functionality
7.Compliant with SFP+MSA with duplex LC connector
8.Single+3.3V Power Supply
9.Case operating temperature:-5?C~+70?C
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | |||||||
Transmitter | Min | Typical | Max | Unit | Notes | |||
Centre Wavelength | c | 1260 | 1310 | 1360 | nm | |||
Spectral Width(RMS) | λ | 4 | nm | |||||
Average Output Power | Pout | -9 | -3 | dBm | 1 | |||
Extinction Ratio | ER | 9 | dB | |||||
Optical Rise/Fall Time(20%~80%) | tr/tf | 0.26 | ns | |||||
Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
TX Disable | Disable | 2 | Vcc | V | ||||
Enable | 0 | 0.8 | V | |||||
TX Fault | Fault | 2 | Vcc | V | ||||
Normal | 0 | 0.8 | V | |||||
Receiver | ||||||||
Centre Wavelength | λc | 1260 | 1580 | nm | ||||
Receiver Sensitivity | -23 | dBm | 3 | |||||
Receiver Overload | -3 | dBm | 3 | |||||
LOS De-Assert | LOSD | -24 | dBm | |||||
LOS Assert | LOSA | -35 | dBm | |||||
LOS Hysteresis | 1 | 4 | dB | |||||
Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
LOS | High | 2 | Vcc | V | ||||
Low | 0.8 | V | ||||||
NOTE:
1.The optical power is launched into SMF.
2.PECL input,internally AC-coupled and terminated.
3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.
4.Internally AC-coupled.
Ordering information
| Modle | Rate | Wavelength | Transmission Distance | Tx Power | Rx Power | Connector |
| XYT-SFP＋BX-U/D | 10Gb/s | 1270/1330 | 10km | -1~-5 | ≤-15 | LC |
| XYT-SFP＋BX-U/D | 10Gb/s | 1270/1330 | 40km | 0~5 | ≤-16 | LC |
| XYT-SFP＋BX-U/D | 10Gb/s | 1270/1330 | 60km | 0~5 | ≤-20 | LC |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
