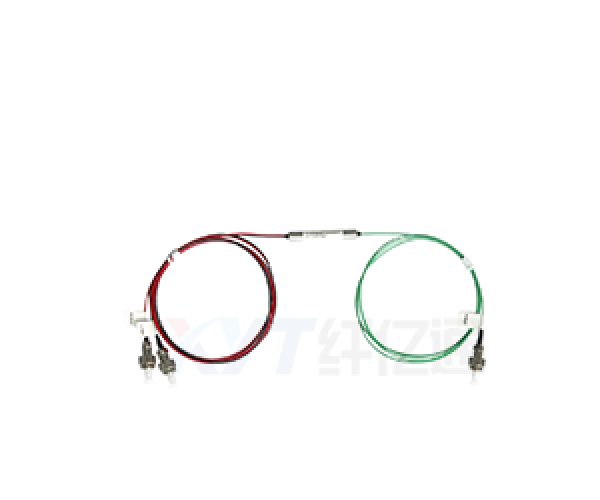

T1490/R1310&1550 FWDM

Category:T1490R1310&1550; Filter WDM Device
Code:FWDM

 - Products description -


    Sharetop(XYT-TECH) FWDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging.It provides low insertion loss,high channel isolation,low temperature sensitivity and epoxy free optical path.


 - Product Features -


1.Wide Wavelength Range
2.High Channel Isolation
4.Low Insertion Loss
7.Epoxy free optical path and excellent reliability


 - Product Specification -


1.Telecommunication network system
2.Transmitters and fiber lasers
4.Fiber optical lnstruments
5.Fiber Optical amplifier
6.System Monitoring

Specification


Parameter

T1490 R1310&1550

Pass Band Wavelength Range(nm)

1480~1500

Reflection Band1 Wavelength Range(nm)

1260~1360

Reflection Band1 Wavelength Range(nm)

1540~1560

Insertion Loss(dB)

Reflect Channel

≤0.6

Pass Channel

≤0.8

Pass Band Rippler(dB)

<0.3

Isolation(dB)

Reflect Channel

>15

Pass Channel

>30

Insertion Loss Temperature Sensitivity(dB/℃)

<0.005

Polarization Dependent Loss(dB)

<0.1

Polarization Mode Dispersion(ps)

<0.1

Directivity(dB)

>50

Return Loss(dB)

>50

Maximum Power Handling(mW)

500

Operating Temperature(℃)

0~+70

Storage Temperature(℃)

-40~+85

Package Dimension(mm)

1.Φ5.5 x L35(bare fiber)
2.Φ5.5 x L38(900um Loose tube)
3.L90xW20xH9.5(2.0 mm or 3.0mm Cable)

Above specification are for device without connector.



Order Information

Product

Wavelength

Fiber Type

Fiber Length

Connector

FWDM

3/45=1310pass/1490&1550reflect
4/35=1490pass/1310&1550reflect
5/34=1550pass/310&1490reflect

1=250um bare fiber
2=900um Loose tube
3=2.0mm Cable
4=3.0mm Cable

1=1m
1.5=1.5m
C=Customerization

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC

Sale service

Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free.
Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
