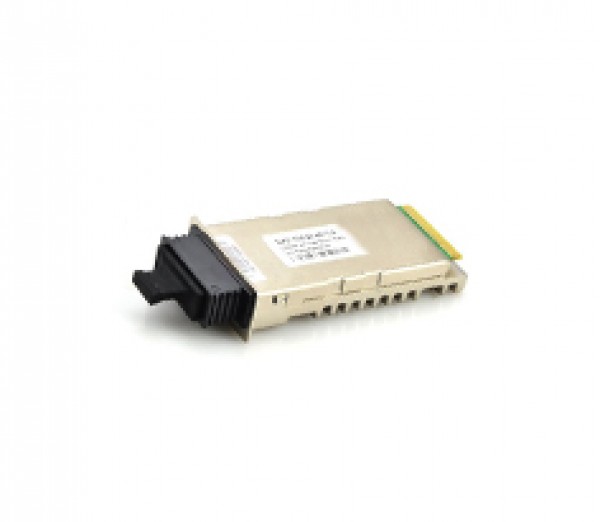

XGIGA’s 10Gb/s X2 transceiver module X2BS-273396-10D is a hot pluggable in the Z-direction module. that is usable in typical router line card applications,Storage,IP network and LAN and compliant to X2 MSA.The X2BS-273396-10D is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver,XAUI interface,Mux and Demux with clock and data recovery(CDR).This version of XGIGA Inc.transceiver line uses an uncooled 1270nm DML Laser Diode to achieve 10km over standard single mode fiber as 10GBASE-LR of the IEEE 802.3ae.
- Product Features -
XAUI Electrical Interface:4 Lanes@3.125Gbit/s
Uncooled 1270nm DFB laser and PIN receiver
Hot Z-Pluggable
SC-Duplex Optical Receptacle
MDIO,DOM Support
Compliant to X2 MSA
Compliant to IEEE 802.3ae 10GBASE-LR Application
Case operating temperature:0 to 70 °C
- Product Specification -
IEEE 802.3ae as 10GBASE-LR,X2 MSA Release1.0B
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
XAUI Date Rate | DR | 3.125 | Gb/s | |||
XAUI Baud Rate Tolerance | -100 | 100 | ppm | Relative Tolerance | ||
Differential Input Voltage Swing | 220 | 1600 | mv | 8B/10B Coded Input Signal | ||
Differential Output Voltage Swing | 800 | 1600 | mVp-p | RLOAD=100?± 5% | ||
Differential Input Impedance | 80 | 100 | 120 | ? | ||
Total Output Jitter | TJXAUI | 0.35 | UI | no pre-equalization | ||
Total Deterministic Output Jitter | DJXAUI | 0.17 | UI | no pre-equalization |
Ordering information
Part Number | Product Description |
XYT-31192-LRC | 1310nm,10.3125Gbps, 10Km, 0?C~+70?C |
|
