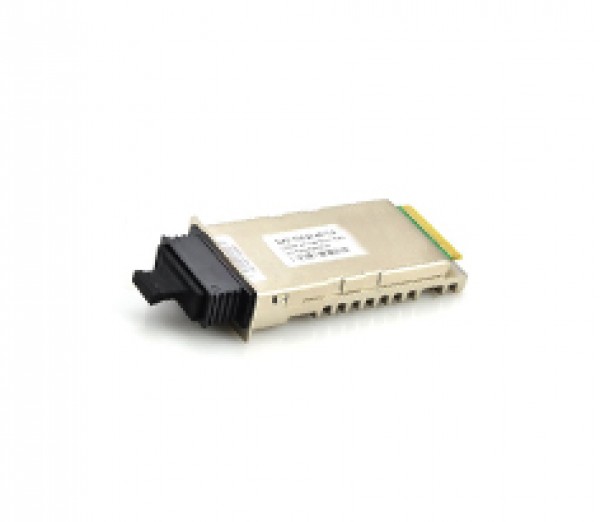

10G X2 BIDI Transceiver 80KM

Category:10 Gigabit BIDI X2 1330nm DFB laser and 1270nm 80KM Optic Transceiver
Code:X2/Xenpak Dual Fiber Module

 - Products description -


    XGIGA’s 10Gb/s X2 transceiver module X2BS-332796-10D is a hot pluggable in the Z-direction module that is usable in typical router line card applications,Storage,IP network and LAN and compliant to X2 MSA.The X2BS-332796-10D is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver,XAUI interface,Mux and Demux with clock and data recovery(CDR).This version of XGIGA Inc.transceiver line uses an uncooled 1330nm DML Laser Diode to achieve 80km over standard single mode fiber as 10GBASE-LR of the IEEE 802.3ae.


 - Product Features -


1.XAUI Electrical Interface:4 Lanes@3.125Gbit/s
2.Uncooled 1330nm DFB laser and 1270nm PIN receiver
3.Hot Z-Pluggable
4.SC-Duplex Optical Receptacle
5.MDIO,DOM Support
6.Compliant to X2 MSA
7.Compliant to IEEE 802.3ae 10GBASE-LR Application
8.Case operating temperature:0 to 70 °C


 - Product Specification -


IEEE 802.3ae as 10GBASE-LR,X2 MSA Release1.0B

Specification

Absolute Maximum Ratings

Table 1-Optical and Electrical Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

XAUI Date Rate

DR


3.125


Gb/s


XAUI Baud Rate Tolerance


-100


+100

ppm

Relative Tolerance

Differential Input Voltage Swing


220


1600

mv

8B/10B Coded Input Signal

Differential Output Voltage Swing


800


1600

mVp-p

RLOAD=100?± 5%

Differential Input Impedance


80

100

120

?


Total Output Jitter

TJXAUI



0.35

UI

no pre-equalization

Total Deterministic Output Jitter

DJXAUI



0.17

UI

no pre-equalization



Ordering information

Part Number

Product Description

XYT-31192-LRC

1310nm,10.3125Gbps, 10Km, 0?C~+70?C

Sale service

Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free.
Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
