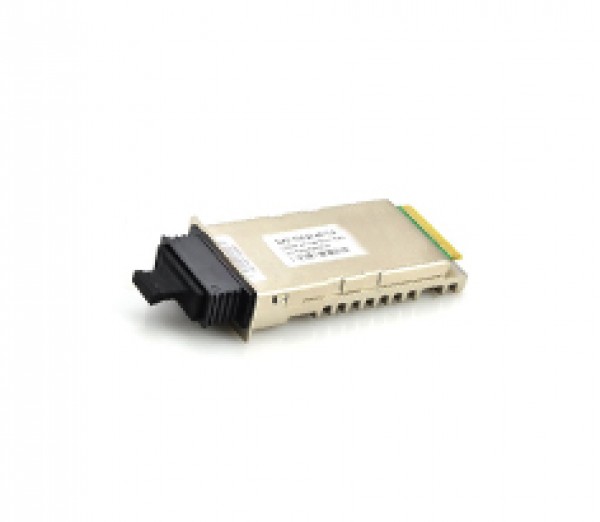

10G CWDM X2 ER 10km Transponder

Category:10Gb/s CWDM X2 ER Transponder
Code:X2/Xenpak

 - Product Features -


1.XAUI Electrical Interface: 4 Lanes @ 3.125Gbit/s

2.Hot Pluggable

3.MDIO, DOM Support

4.Compliant to X2 MSA

5.Case operating temperature: 0 to 70 °C

6.The XG-X2-SFP+ Converter Module converts a 10 Gigabit Ethernet X2 port into a 10

Gigabit Ethernet SFP+ port. With the Converter Module, customers have the flexibility to use the 10 Gigabit X2 interface port of a switch with X2 modules or SFP+ modules.


 - Product Specification -


10Gb/s CWDM X2 ER Transponder

Specification

 Table 1-Optical and Electrical Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

XAUI Date Rate

DR


3.125


Gb/s


XAUI Baud Rate Tolerance


-100


100

ppm

Relative Tolerance

Differential Input Voltage Swing


220


1600

mv

8B/10B Coded Input Signal

Differential Output Voltage Swing


800


1600

mVp-p

RLOAD=100?± 5%

Differential Input Impedance


80

100

120

?


Total Output Jitter

TJXAUI



0.35

UI

no pre-equalization

Total Deterministic Output Jitter

DJXAUI



0.17

UI

no pre-equalization


Ordering information

Part Number

Product Description

XYT-31192-LRC

1310nm,10.3125Gbps, 10Km, 0?C~+70?C

Sale service

Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free.
Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
