1x4+1 CCWDM-CCWDM-WDMmuxdemux-OpticPassiveComponents--Sharetop Technology Co.Limited

- Products description -

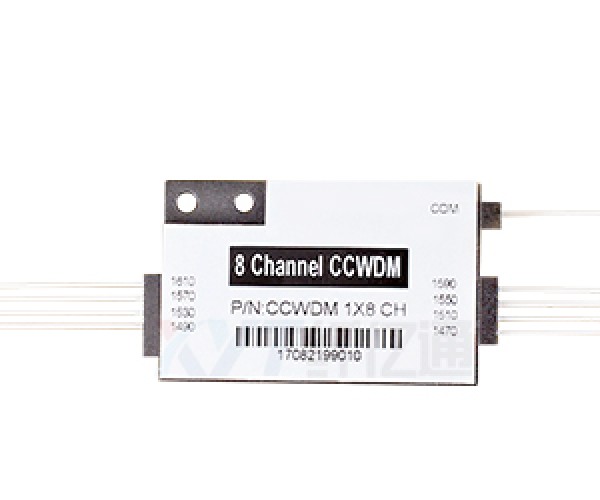

Sharetop(XYT-TECH) offers a full range of compacted cwdm (CCWDM ) . We aslo called it mini CWDM

- Product Features -

Epoxy free in optical path

Stable and reliable

Compact size

Low insertion Loss

- Product Specification -

Optical Add/Drop

Telecom networks

Metro networks

Parameter	Unit	Min	Typical	Max
Channel Number	CH	4+1
Operating Wavelength	nm	1260~1620
Channel Wavelength	nm	ITU CH
Channel Insertion Loss	dB		1.0	1.5
Upgrade Port Insertion Loss				1.2
Passband Bandwidth	nm	13	15
Channel Ripple	dB		0.3	0.5
Adjacent Channel Isolation	dB	30	35
Non-Adjacent Channel Isolation	dB	40
Return Loss	dB	45
Directivity	dB	55
PDL	dB			0.2
PMD	ps			0.2
Power Handling	mW			300
Operating temperature	°C	0~+70
Storage temperature	°C	-40~+85
Package (exclude boots)	mm	44(L)X28(W)X6(H)

Notes:

1.All specifications include all states of polarization and all operating temperature and all wavelength ranges specified.

2.All the data are without connectors.Insertion loss of one pair connector is less than 0.3dB.

Order Information

CCWDM4+1-	X-	XXXX-	X-	XX-	X-	X
	Module Type	Wavelength	Pigtail Type	Fiber Length	Connector	Package
	M=Mux D=DeMux	1271 ... 1471 1491 ... 1611	0=bare fiber 1=900um loose tube 2=2mm cable 3=3mm cable	05=0.5m 10=1.0m 15=1.5m	0=none 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=LC	0=Standard 1=Special
