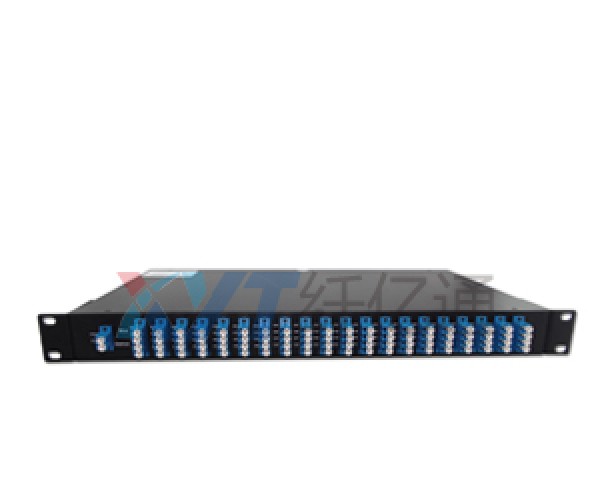

100G 32ch DWDM/OADM AWG

Category:XYT-TECH-DWDM-XX
Code:Customized XYT-DWDM

 - Products description -


    Sharetop(XYT-TECH) DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Fixed Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.


 - Product Features -


Low Insertion Loss

High Isolation

Low PDL

Compact Design

Good channel-to-channel uniformity


 - Product Specification -


DWDM System

PON Networks

CATV Links

Fiber optical amplifier

Wavelength routing

Specification

ItemUnit

Parameters

Channel SpacingGHz

100GHZ

Wavelength Range

C- band ITU channels

Channel Centers nm

ITU

Channels ch32
Passbandwidthnm

≥ +/- 0.13

Passband RippledB

≤ 0.5

Channel Insertion LossdB≤4.8
Channel EXP Insertion LossdB≤5.0
Isolation (adjacent channel)dB

≥30

Isolation (non-adjacent channel)dB

≥ 40

Polarization Dependent Loss

dB

≤ 0.2

Polarization Mode Dispersion

ps

≤ 0.2

Directivity

dB

≥ 50

Return LossdB

≥ 45

Optical Power HandlingmW≤ 500
Operating Temperature Range

-5 to 70

Storage Temperature Range

-40 to +85

Fiber Type

NA

SMF-28e

Package dimensionsmm

L100 x W80 x H10(2CH-8CH

L142 x W102 x H14.5(9CH-18CH)

All the specifications are based on the devices without connector

Ordering information (DWDM-B-50-4-C20-1-1-0)

Product

Frequency

Channel

1st ITU channel

Fiber

Type

Fiber

Length

Connector

B=BIDI

D=Dual fiber

10=100G

4=4 channel

8=8 channel

.....

16=16 channel

18=18 channel


C20= 1561.42 nm
C21= 1560.61 nm
 …

1=Bare fiber
2=900um

3=3.0mm

1=1m

2=2m

0=None

1=FC/APC

2=FC/PC
3=SC/APC
4=SC/PC
5=LC
