- Products description -

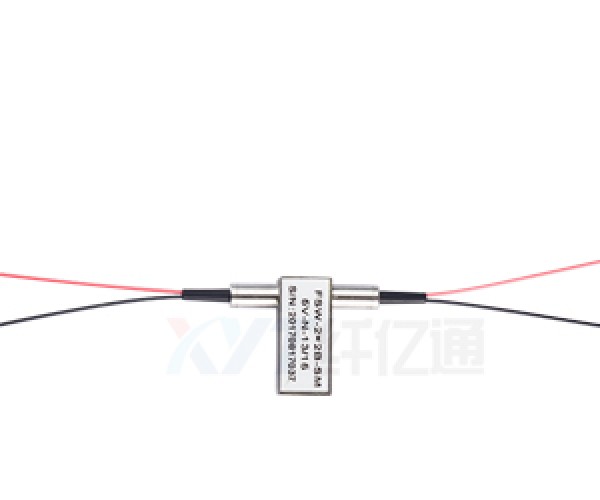

2x2B Bypass Optical Switch
- Product Features -
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
- Product Specification -
MAN
R&D in Laboratory
System Monitoring
Configurable OADM
Parameters | 2×2B | ||
Wavelength Range | nm | 670～980 | 1260～1650 |
Operating wavelength | nm | 670/785/850/980 | 1310/1490/1550/1625/1650 |
Insertion Loss | dB | Typ:0.6 Max:1.0 | Typ:0.5 Max:0.8 |
Return Loss | dB | MM≥30 SM≥50 | |
Crosstalk | dB | MM≥35 SM≥55 | |
PDL | dB | ≤0.05 | |
WDL | dB | ≤0.25 | |
TDL | dB | ≤0.25 | |
Repeatability | dB | ≤±0.02 | |
Power Supply | v | 3.0 or 5.0 | |
Lifetime | Cycel | ≥107 | |
Switch Time | ms | ≤8 | |
Transmission Power | mW | ≤500 | |
Operating Temperature | ℃ | -40～+85 | |
Storage Temperature | ℃ | -40～+85 | |
Weight | g | 16 | |
Dimension | mm | ||
Above specification are for device without connector
Parameters | Pins | Electric Drive | Status Sensor | ||||||
2×2B | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | |
Latching | P1-P3 | -- | -- | GND | V+ | Close | Open | Open | Close |
P1-P4、P2-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
Non-latching | P1-P3 | -- | -- | -- | -- | Close | Open | Open | Close |
P1-P4、P2-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
Electric
5V Latching | 4.5~5.5 | 36~44mA | 125Ω |
5V Non-latching | 4.5~5.5 | 26~32mA | 175Ω |
3V Latching | 2.7~3.3 | 54~66mA | 50Ω |
3V Non-latching | 2.7~3.3 | 39~47mA | 70Ω |
Ordering Information
Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S:SM M:MM | 85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15:1310/1550nm
| 3: 3V 5: 5V | L: Latching N:Non- Latching | 5:50/125 6:62.5/125 9: 9/125
| 25:250um 90:900um 20:2.0mm
| 05:0.5m 10:1.0m 15:1.5m
| OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
