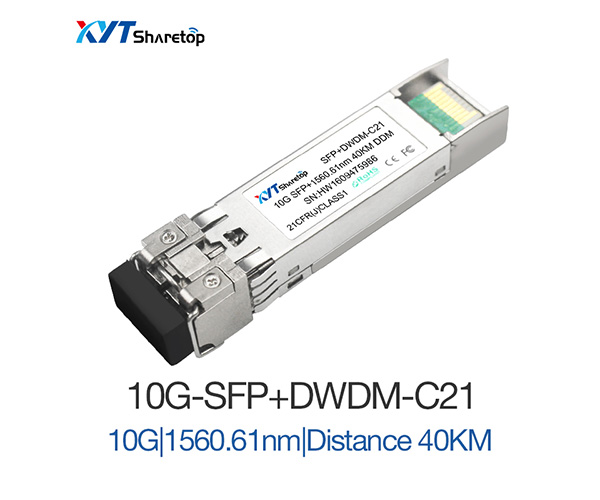

10G DWDM SFP+ 40km Transceiver

Category:XYT-SFP+DW-40
Code:Color Light Module

 - Products description -


    The SFP+-10G-DWDM-40km-LC-DDM transceivers include an PIN photo detector diode and temperature stabilized DFB-EML transmitter. Digital diagnostic functions are available via an I2C.This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength.


 - Product Features -


Up to 11.1Gbps Data Links

Up to 80km transmission on SMF

DWDM EML Laser and APD receiver

Metal enclosure, for lower EMI

2-wire interface with integrated Digital Diagnostic monitoring

Hot-pluggable SFP+ footprint

Specifications compliant with SFF 8472

Compliant with SFP+ MSA with LC connector

Single 3.3V power supply

Case operating temperature range:0°C to 70°C

Power dissipation < 1.5W


 - Product Specification -


10GBASE-ZR/ZW

80 km 10G Fiber Channel

10G Ethernet with FEC

Specification

 Optical Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

NOTE

Transmitter







Average Optical Power

Pout

-1


3

dBm

1

Optical Wavelength

λc

λc -0.1


λc +0.1

nm


Center Wavelength Spacing



100


GHz

2

Optical Extinction Ratio

ER

6



dB


Transmitter and Dispersion Penalty

TDP



3.0

dB


Side mode Suppression ratio

SMSR

30



dB


Average Launch Power(Laser Off)

Poff



-30

dBm


Output Eye Mask

Compliant with IEEE 802.3ae


Receiver







Rx Sensitivity

RSENS



-15.8

dBm

3

Input Saturation Power (Overload)

Psat

0.5



dBm


Wavelength Range

λC

1270


1610

nm


LOS De -Assert

LOSD



-19

dBm


LOS Assert

LOSA

-28



dBm


LOS Hysteresis


0.5



dB




Notes:

1. Output power is power coupled into a 9/125 mm single-mode fiber.

2. Corresponds to approximately 0.8 nm.

3. Measured with a PRBS 231<span style="padding: 0px; margin: 0px; font-family


Ordering information

Type

Rate

Wavelength

Transmission Distance

  Transmitter     Power

Receiver sensitivity

Interface

     Operating           temperature

CWDM SFP+

10G

1270-1450nm

10KM

-1~-5

≤-14.4

LC

0-70

10G

1470-1610nm

40KM

-1~-3

-15.8

LC

0-70


10G

1470-1610nm

80KM

0~-4

-23

LC

0-70


10G

C20-C60

40KM

-1-3

-15.8

LC

0-70℃


10G

C20-C60

80KM

0-4

-23

LC

0-70℃



Sale service

Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free.
Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
