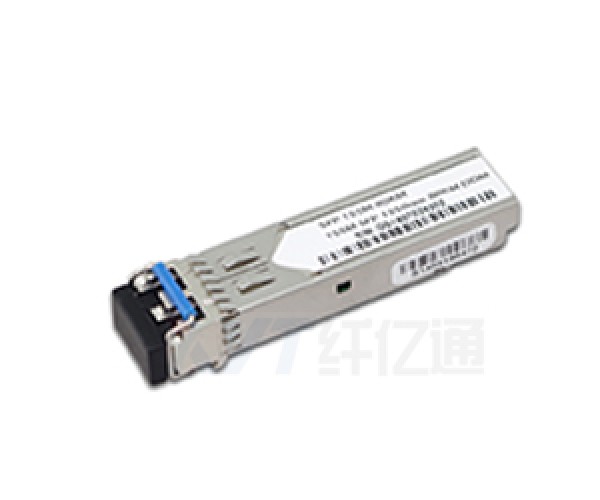

622M SFP optic transceiver 550M

Category:XYT-622M-SFP-0.55
Code:Dual Fiber Module

 - Products description -


    SFP-622M-850nm-550m-MM-LC-DDM Small Form Factor Pluggable (SFP)  transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of four sections: the LD driver, the limiting amplifier, the VCSEL laser and the PIN photo-detector . The module data link up to 550m in 50/125um multi mode fiber.


    The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.


 - Product Features -


Up to 622Mb/s data links

VCSEL laser transmitter and PIN photo-detector

Up to 550 m on 50/125µm MMF

Hot-pluggable SFP footprint

Duplex LC/UPC type pluggable optical interface

Low power dissipation

Metal enclosure, for lower EMI

RoHS compliant and lead-free

Single +3.3V power supply

Compliant with SFF-8472

Case operating temperature

Commercial:0°C to +70°C

Extended:-10°C to +80°C

Industrial:-40°C to +85°C


 - Product Specification -


Switch to Switch Interface

Fast Ethernet

Switched Backplane Applications

Router/Server Interface

Other Optical Links

Specification

Specification of Transmitter

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Average Output Power

POUT

-9


-3

dBm

Note (1)

Extinction Ratio

ER

8.2



dB


Center Wavelength

λC

830

850

860

nm

VCSEL Laser

Spectrum Bandwidth(RMS)

σ



1

nm


Transmitter OFF Output Power

POff



-45

dBm


Differential Line Input Impedance

RIN

90

100

110

Ohm


Output Eye Mask

Compliant with G.957(class 1 laser safety)


Note (2)

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition


Ordering information

Product part Number

Data Rate

(Mbps)

Media

Wavelength

(nm)

Transmission

Distance(m)

Temperature Range(Tcase)(

SFP-622M-850nm-550m-MM-LC-DDM

622

Multi mode fiber

850

550

0~70

commercial

SFP-622M-850nm-550m-MM-LC-DDM

622

Multi mode fiber

850

550

-10~80

extended

SFP-622M-850nm-550m-MM-LC-DDM

622

Multi mode fiber

850

550

-40~85

industrial
