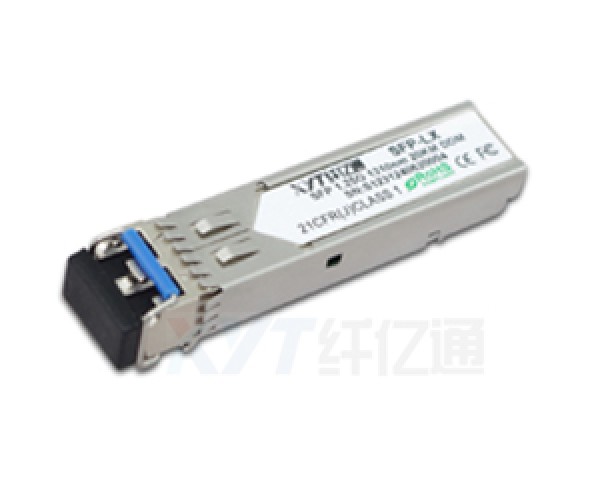

The XYT optic SFP transceivers are high performance,cost effective modules supporting multi-rate of 3Gbps and 80km transmission distance with SMF.The transceiver consists of three sections:a FP laser transmitter,a PIN photodiode integrated with a trans-impedance preamplifier(TIA)and MCU control unit.All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement(MSA)and SFF-8472.For further information,please refer to SFP MSA.
- Product Features -
1．Operating data rate up to 3Gbps
2．1310nm laser and PIN photodetector for 40km transmission with SMF
3．PIN photodetector for 100m transmission with SMF
4．Meet SFP MSA and SFF-8472 with LC receptacle
5．Metal Enclosure for Lower EMI
6．Comply with SFP MSA
7．Operation Temperature Range 0~70oC or-40~85oC Optional
8．Single+3.3V Power Supply
9．RoHS-6 Compliant
- Product Specification -
1．Gigabit Ethernet
2．Fiber Channel
3．WDM Application
4．Switch to Switch interface
5．Switch backplane applications
6．ATM
7．SONT/SDH/PDH
8．FDDI
9．Other optical transmission system
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
Transmitter | ||||||||
Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |||
Spectral Width(RMS) | ?λ | 4 | nm | |||||
Average Output Power | Pout | -9 | -3 | dBm | 1 | |||
Extinction Ratio | ER | 9 | dB | |||||
Optical Rise/Fall Time(20%~80%) | tr/tf | 0.26 | ns | |||||
Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
TX Disable | Disable | 2 | Vcc | V | ||||
Enable | 0 | 0.8 | V | |||||
TX Fault | Fault | 2 | Vcc | V | ||||
Normal | 0 | 0.8 | V | |||||
Receiver | ||||||||
Centre Wavelength | λc | 1260 | 1580 | nm | ||||
Receiver Sensitivity | -23 | dBm | 3 | |||||
Receiver Overload | -3 | dBm | 3 | |||||
LOS De-Assert | LOSD | -24 | dBm | |||||
LOS Assert | LOSA | -35 | dBm | |||||
LOS Hysteresis | 1 | 4 | dB | |||||
Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
LOS | High | 2 | Vcc | V | ||||
Low | 0.8 | V | ||||||
NOTE:
1.The optical power is launched into SMF.
2.PECL input,internally AC-coupled and terminated.
3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.
4.Internally AC-coupled.
Ordering information
Mode | Rate | Wavelength | Transmission distance | Transmitter power | Receiver sensitivity | Diode | Interface | |||||
XYT-SFP-SX | 3Gb/s | 850 nm | 300M | -3~-8 | ≤-17 | VCSEL | LC | |||||
XYT-SFP-LX | 3Gb/s | 1310nm | 10KM | -3~-9 | ≤-18 | DFB | LC | |||||
XYT-SFP-EX | 3Gb/s | 1310nm | 40KM | 0~3 | ≤-20 | DFB | LC | |||||
XYT-SFP-ZX | 3Gb/s | 1550nm | 80KM | 0~5 | ≤-28 | DFB | LC | |||||
XYT-SFP-CWDM-** | 3Gb/s | **nm | 80KM | 0~5 | ≤-28 | DFB | LC | |||||
|
