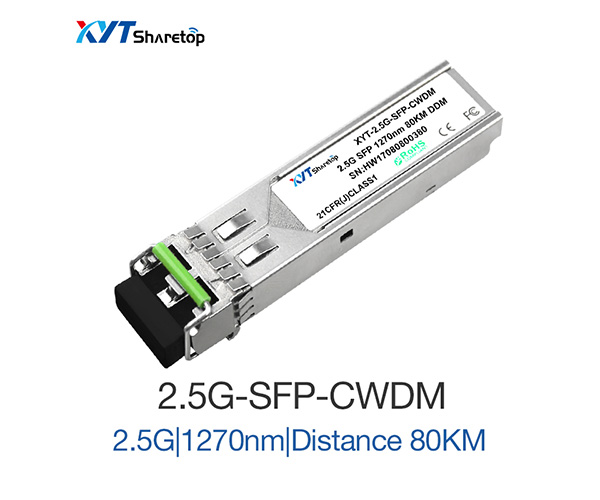

2.5G CWDM SFP 80KM module

Category:XYT-2.5G-SFP-CW
Code:Color Light Module

 - Products description -


    SFP-2.5G-CWDM-80km-LC-DDM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections : the LD driver, the limiting amplifier , the digital diagnostic monitor, the DFB laser and the PIN photo-detector .The module data link up to 80KM in 9/125um single mode fiber.


    The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.


 - Product Features -


Up to 2.5Gb/s data links

DFB laser transmitter and PIN photo-detector

Up to 80km on 9/125µm SMF

Hot-pluggable SFP footprint

Duplex LC/UPC type pluggable optical interface

Low power dissipation

Metal enclosure, for lower EMI

RoHS compliant and lead-free

Single +3.3V power supply

Compliant with SFF-8472

Case operating temperature0°C to +70°C


 - Product Specification -


Switch to Switch Interface

Fast Ethernet

Switched Backplane Applications

Router/Server Interface

Other Optical Links

Specification

Table 1-Optical and Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

1260

1310

1360

nm


Spectral Width(RMS)



4

nm


Average Output Power

Pout

-9


-3

dBm

1

Extinction Ratio

ER

9



dB


Optical Rise/Fall Time(20%~80%)

tr/tf



0.26

ns


Data Input Swing Differential

VIN

400


1800

mV

2

Input Differential Impedance

ZIN

90

100

110

Ω


TX Disable

Disable


2


Vcc

V


Enable


0


0.8

V


TX Fault

Fault


2


Vcc

V


Normal


0


0.8

V


Receiver

Centre Wavelength

λc

1260


1580

nm


Receiver Sensitivity




-23

dBm

3

Receiver Overload


-3



dBm

3

LOS De-Assert

LOSD



-24

dBm


LOS Assert

LOSA

-35



dBm


LOS Hysteresis


1


4

dB


Data Output Swing Differential

Vout

400


1800

mV

4

LOS

High

2


Vcc

V


Low



0.8

V


NOTE:

1.The optical power is launched into SMF.

2.PECL input,internally AC-coupled and terminated.

3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.

4.Internally AC-coupled.



PRODUCT SELECTION

SFP-2.5G-CWDM-80km-LC-DDM

Type



Rate

Wavelength

Transmission Distance

Transmitter  power

Receiver  sensitivity

Interface

 Operating     temperature

cwdm sfp

2.5G

**nm

80KM

0~5

-30

LC

0-70
