- Products description -

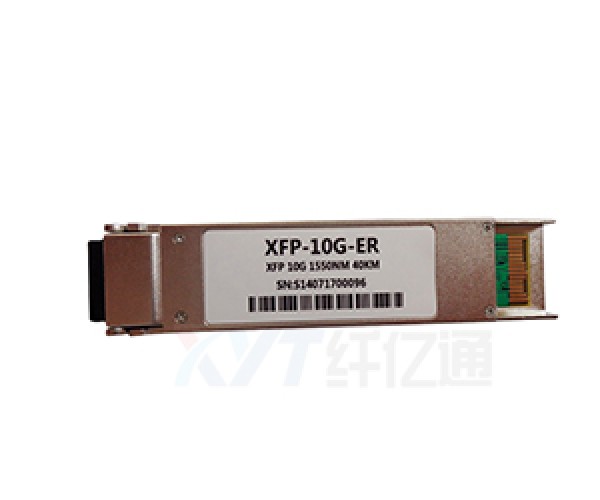

10Gb/s 80km CWDM XFP Optical Transceiver is designed for serial optical data communications such as 8G Fiber Channel.It supports the 10Gbps transmission on 9/125 mm SMF.The transmitter section consists of a CWDM electrical-modulate laser(EML),driver and signal conditioner.The receiver section incorporates a PIN photodiode integrated with a trans-impedance preamplifier(TIA)and signal conditioner.Digital diagnostics functions are available via a 2-wire serial interface,as specified in the XFP MSA.
- Product Features -
1.Up to 10Gb/s Data Link
2.Complaint to XFP MSA
3.Cooled CWDM EML laser
4.AC/AC Coupling according to MSA
5.Maximum Link Length of 80km
6.2-Wire Interface for Integrated Digital Diagnostic Monitoring
7.Compliance with Fiber Channel FC-PI-4 800-SM-LL-L
8.XFI and Line side Loopback Mode
9.No reference clock required
10.Low Power Dissipation<3.5W
11.RoHS 6 Compliant
12.Case temperature range:-5°C to 70°C
13.Duplex LC Connector
- Product Specification -
Multi-rate 8x/4x/2x Fiber Channel
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
Transmitter | ||||||||
Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |||
Spectral Width(RMS) | ?λ | 4 | nm | |||||
Average Output Power | Pout | -9 | -3 | dBm | 1 | |||
Extinction Ratio | ER | 9 | dB | |||||
Optical Rise/Fall Time(20%~80%) | tr/tf | 0.26 | ns | |||||
Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
TX Disable | Disable | 2 | Vcc | V | ||||
Enable | 0 | 0.8 | V | |||||
TX Fault | Fault | 2 | Vcc | V | ||||
Normal | 0 | 0.8 | V | |||||
Receiver | ||||||||
Centre Wavelength | λc | 1260 | 1580 | nm | ||||
Receiver Sensitivity | -23 | dBm | 3 | |||||
Receiver Overload | -3 | dBm | 3 | |||||
LOS De-Assert | LOSD | -24 | dBm | |||||
LOS Assert | LOSA | -35 | dBm | |||||
LOS Hysteresis | 1 | 4 | dB | |||||
Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
LOS | High | 2 | Vcc | V | ||||
Low | 0.8 | V | ||||||
NOTE:
1.The optical power is launched into SMF.
2.PECL input,internally AC-coupled and terminated.
3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.
4.Internally AC-coupled.
Ordering information
Type | Rate | Wavelength | Transmission Distance | Transmitter Power | Receiver sensitivity | Interface | Operating temperature |
CWDMXFP | 10G | 1270-1450nm | 10KM | -1~-5 | ≤-14.4 | LC | 0-70℃ |
10G | 1470-1610nm | 40KM | -1~-3 | ≤-15.8 | LC | 0-70℃ | |
10G | 1470-1610nm | 80KM | 0~-4 | ≤-23 | LC | 0-70℃ | |
| DWDM XFP | 10G | C20-C60CH | 40KM | -1-3 | ≤-15.8 | LC | 0-70℃ |
10G | C20-C60CH | 80KM | 0-4 | ≤-23 | LC | 0-70℃ |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
