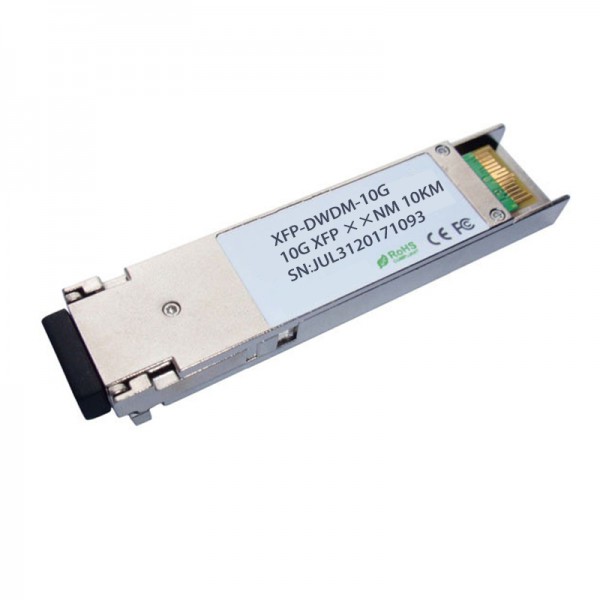

10G XFP DWDM 80KM Transceiver

Category:10Gb/s 80km DWDM XFP Optical Transceiver
Code:10G XFP WDM Module

 - Products description -


    The SFP transceivers are high performance,cost effective modules supporting multi-rate of 10 Gbps and 80km transmission distance with SMF. The transceiver consists of three sections:a FP laser transmitter,a PIN photodiode integrated with a trans-impedance preamplifier(TIA)and MCU control unit.All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement(MSA)and SFF-8472.For further information,please refer to SFP MSA.


 - Product Features -


1.Up to 10Gb/s Data Link

2.Complaint to XFP MSA

3.Cooled DWDM EML laser

4.AC/AC Coupling according to MSA

5.Maximum Link Length of 80 km

6.2-Wire Interface for Integrated Digital Diagnostic Monitoring

7.Compliance with Fiber Channel FC-PI-4 800-SM-LL-L

8.XFI and Line side Loopback Mode

9.No reference clock required

10.Low Power Dissipation<3.5W

11.RoHS 6 Compliant

12.Case temperature range:-5°C to 70°C

13.Duplex LC Connector


 - Product Specification -


1.Gigabit Ethernet

2.Fiber Channel

3.WDM Application

4.Switch to Switch interface

5.Switch backplane applications

6.ATM

7.SONT/SDH/PDH

8.FDDI

9.Other optical transmission system

Specification

Table 1-Optical and Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

1260

1310

1360

nm


Spectral Width(RMS)



4

nm


Average Output Power

Pout

-9


-3

dBm

1

Extinction Ratio

ER

9



dB


Optical Rise/Fall Time(20%~80%)

tr/tf



0.26

ns


Data Input Swing Differential

VIN

400


1800

mV

2

Input Differential Impedance

ZIN

90

100

110

Ω


TX Disable

Disable


2


Vcc

V


Enable


0


0.8

V


TX Fault

Fault


2


Vcc

V


Normal


0


0.8

V


Receiver

Centre Wavelength

λc

1260


1580

nm


Receiver Sensitivity




-23

dBm

3

Receiver Overload


-3



dBm

3

LOS De-Assert

LOSD



-24

dBm


LOS Assert

LOSA

-35



dBm


LOS Hysteresis


1


4

dB


Data Output Swing Differential

Vout

400


1800

mV

4

LOS

High

2


Vcc

V


Low



0.8

V


NOTE:

1.The optical power is launched into SMF.

2.PECL input,internally AC-coupled and terminated.

3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.

4.Internally AC-coupled.



Parameters

Type

Rate

Wavelength

Transmission Distance

 Transmitter    Power

Receiver sensitivity

Interface

    Operating       temperature

CWDMXFP

10G

1270-1450nm

10KM

-1~-5

≤-14.4

LC

0-70

10G

1470-1610nm

40KM

-1~-3

-15.8

LC

0-70

10G

1470-1610nm

80KM

0~-4

-23

LC

0-70

DWDM    XFP

10G

C20-C60CH

40KM

-1-3

-15.8

LC

0-70℃

10G

C20-C60CH

80KM

0-4

-23

LC

0-70℃


Sale service

Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free.
Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
