100Gb/s CFP4 LR4 10km

Category:100Gb/s CFP4 LR4 10km Optical Receiver
Code:CFP/CFP2/CFP4 Business Module

 - Products description -


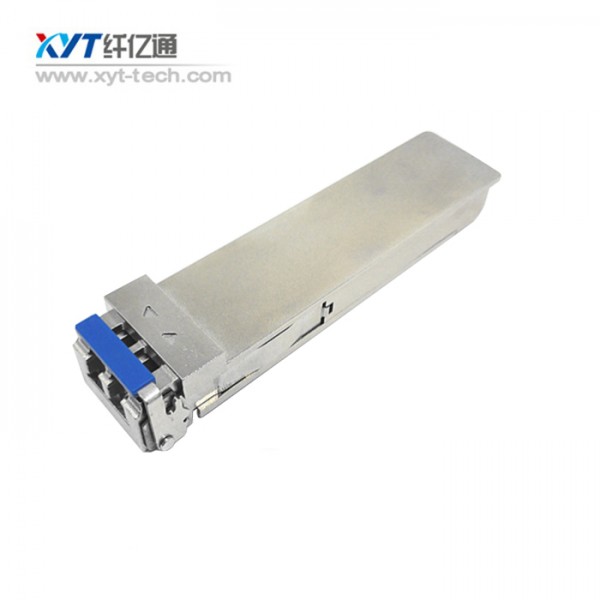

    Sharetop’s 100G CFP4 LR4 optical receiver , 4 lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.


 - Product Features -


Supports up to 112Gbps bit rates

LC connector

Hot pluggable

Operating electrical serial data rate up to 27.952493Gbps

4 parallel electrical serial interface

Applicable for 10km SMF connection

Low power consumption (Max: 3W)

Digital Diagnostic Monitor Interfacel

MDIO Communication Interface

Compliant with 100GBASE-LR4 and OTU4

Operating case temperature:Commerical:0 to 70 °C


 - Product Specification -


Local Area Network(LAN)

Wide Area Network(WAN)

Switch to router interface

ITU-T OTU4 OTL4.4


Standards


Compliant with IEEE 802.3ba

Compliant with CFP4 MSA hardware specifications

Compliant with CFP4 MSA management specifications

Compliant with ITU-T G709/Y.1331

Compliant with RoHS

Specification

Optical Characteristics

(Tested under recommended operating conditions,unless otherwise noted)

Parameter

Symbol

Unit

Min

Typ

Max

Notes

Optical Receiver Characteristics

Receive Rate for Each Lane


Gbps


25.78125

27.9525


Overload Input Optical Power

Pmax

dBm

5.5



3

Average Receive Power for Each

Lane

Pin

dBm

-8.6


3

4

Receive Power In OMA for Each

Lane

PinOMA

dBm



3


Difference in Receive Power in

OMA between Any Two Lanes


dBm





Receiver Sensitivity in OMA for

Each Lane

SOMA

dBm



-8.6

5

Stressed Receiver Sensitivity in

OMA for Each Lane


dBm



-6.8

6,7

Notes:

1. The supply current includes CFP4 module’s supply current and test board workingcurrent.

2. Average launch power, each lane (min) is informative for 100GBase-LR4, not the principal indicator of signal strength.

3.The receiver shall be able to tolerate , without damage, continuous exposure to an optical input signal having this average power level

4. Average receive power, each lane (min) is informative and not the principal indicator

of signal strength. A received power below this value cannot be compliant; however, a value above this does not ensure compliance

5. Receiver sensitivity (OMA), each lane (max) is informative

6. Measured with conformance test signal at TP3 for BER=10-12

7. conditions of stressed receiver sensitivity test: vertical eye closure penalty for each lane is 1.8dB;stressed eye J2 jitter for each lane is 0.3UI; stressed eye J9 jitter for each lane is 0.47UI.



Ordering Information

Part Number

Description

XYT--100G_CFP4 LR4_Receiver

100G CFP4 LR4 Receiver 10Km 0~70






Sale service

Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free.
Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
