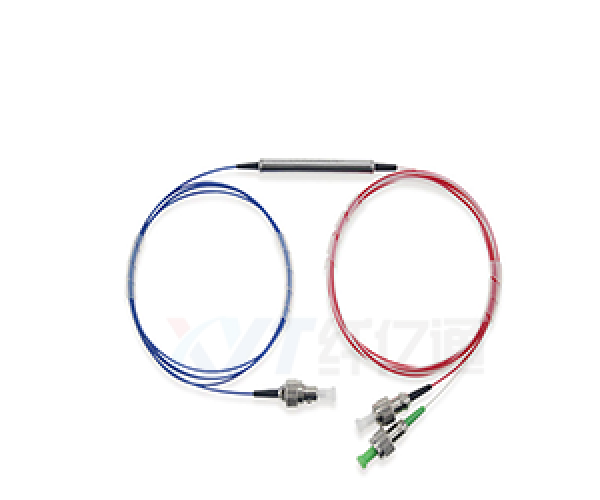

XYT-TECH Sharetop 1*2 PM Optical Circulator
- Product Features -
Low Insertion Loss
High Return Loss
High Isolation
High Extinction Ratio
High Reliability& Stability
- Product Specification -
EDFA & Raman Amplifier
Fiber Sensor
Fiber Instrument
Specifications
Parameter | Unit | Value | ||
Type | - | Type A | Type B | |
Center Wavelength | nm | 1310& 1550 | 1310 &1550 | 1064 |
Operating Wavelength Range | nm | ±30 | ±20 | ±5 |
Typ.Peak Isolation 23℃ | dB | 50 | 30 | 30 |
Min.Isolation at 23℃ | dB | 40 | 20 | 28 |
Typ.Insertion Loss at 23℃ | dB | 0.8 | 0.7 | 2.1 |
Max.Insertion Loss at 23℃ | dB | 1.1 | 1.0 | 2.8 |
Min.Extinction Ratio | dB | 20 | 20 | 20 |
Min.Cross Talk | dB | 50 | ||
Min.Return Loss | dB | 50 | ||
Max.Optical Power(CW) | mW | 300 | ||
Max.Tensile Load | N | 5 | ||
Fiber Type | - | PM Panda Fiber | ||
Operating Temperature | ℃ | -5~+70 | ||
Storage Temperature | ℃ | -40~+85 | ||
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower;
The default connector key is aligned to slow axis;
Ordering Information
wavelength | Stage | Axis Alignment | Pigtail type | Fiber length | Connector type |
1550=1550nm, 1310=1310nm,......, 0850=850nm | A=A grade, B=B grade | F=Slow axis working, Fast axis blocked | 0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0 loose tube | 1m 2m etc.
| 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, 4=LC/UPC, 5=LC/APC |
|
