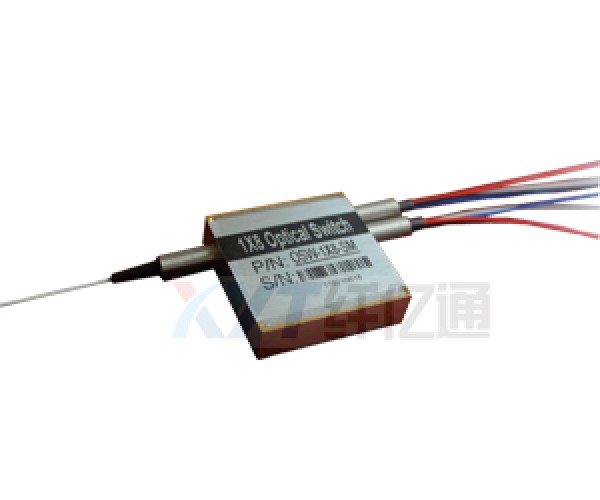

1×8 Mini Optical Switch
- Product Features -
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
- Product Specification -
Channel Blocking
Configurable Add/Drop
System Monitoring
Instrumentation
Parameters
| 1×8 Mini Optic switch | |||
Wavelength Range | nm | 850±40 | 1260~1650 | |
Operating Wavelength | nm | 850 | 1310/1490/1550/1625/1650 | |
Insertion Loss | dB | ≤0.8 | ≤1.0 | |
Return Loss | dB | ≥35 | ≥55 | |
Crosstalk | dB | ≥35 | ≥50 | |
PDL | dB | ≤0.1 | ||
WDL | dB | ≤0.25 | ≤0.3 | |
Repeatability | dB | ≤±0.05 | ||
Power Supply
| V | 3.0 or 5.0 | ||
Lifetime timetimestitimestimesmestimes | Time | 10 Million
| ||
Switch Time | ms | ≤10 | ||
Fiber Type | SM or MM | |||
Transmission Power | mW | ≤500 | ||
Operating Temperature | ℃ | -40~+85 | ||
Storage Temperature | ℃ | -40~+85 | ||
Weight | g | 16 | ||
Dimension | mm | (L)67×(W)25×(H)10 (±0.2) | ||
Above specification are for device without connector
Ordering Information
Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm Or other | 3: 3V 5: 5V | L: Latching N:Non- Latching | 5:50/125 6:62.5/125 9: 9/125
| 25:250um 90:900um 20:2.0mm
| 05:0.5m 10:1.0m 15:1.5m
| OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC |
|
