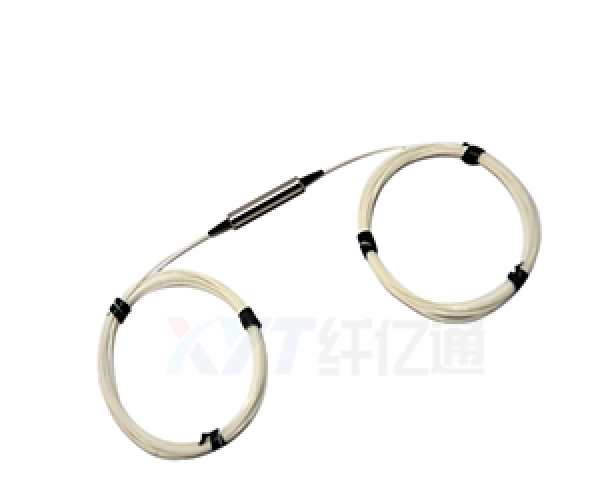

1550nm Optic Isolator

Category:XYT-OI-XXnm
Code:Fiber Optical Isolator

 - Products description -


Polarization insensitive optical isolator


 - Product Features -


Low insertion loss

Isolation reverse loss

High Return Loss

Low Polarization dependent loss

Low polarization mode dispersion


 - Product Specification -


Fiber Amplifier

CATV fiber optic network

Fiber Optic Link

Telecommunications

Specification

Operating Wavelength(nm)

1310 or 1550

1480

Type

Single Stage

Dual Stage

Single Stage

Dual Stage

Grade

Grade P

Typical Peak Isolation(dB)

≥42

≥58

≥42

≥58

Isolation(dB)

≥32

≥46

≥32

≥46

Typical Insertion Loss(dB)

0.3

0.5

0.4

0.5

Insertion Loss(dB)

≤0.5

≤0.7

≤0.6

≤0.8

Return Loss(dB)

≥60/55

PDL (dB)

< 0.05

PMD (ps)

0.25(0.05 available upon request)

Bandwidth(nm)

±15

Operating Temperature(℃)

-5 ~ + 70

Storage Temperature(℃)

-40 ~ +85

Optical Type

Corning SMF-28

Optical Length (Min.)

1 Meter Each End

Max. Operating Power(mW)

500

Package Size (mm)

1. Φ5.5xL30(250um bare fiber)
   2. Φ5.5xL38 (900um Loose tube))

Above specification are for device without connector.


Order Information (XYT-TECH-OI-XXnm)

Isolation Type

Operating Wavelength

Grade

Fiber Type

Optical Length

In/Out Connector

S=Single Stage

D=Dual Stage

13=1310nm

15=1550nm

P=Grade P

A=Grade A

0=Bare Fiber
1=900um Loose tube

1=1.0m
2=1.5m
3=Customer Length

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC


Sale service

Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free.
Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
